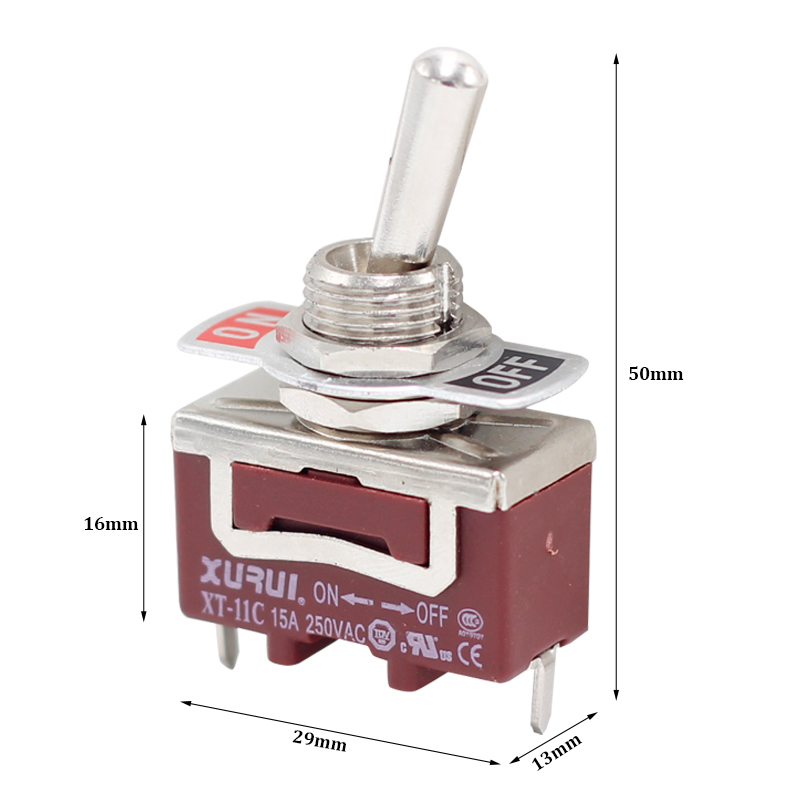

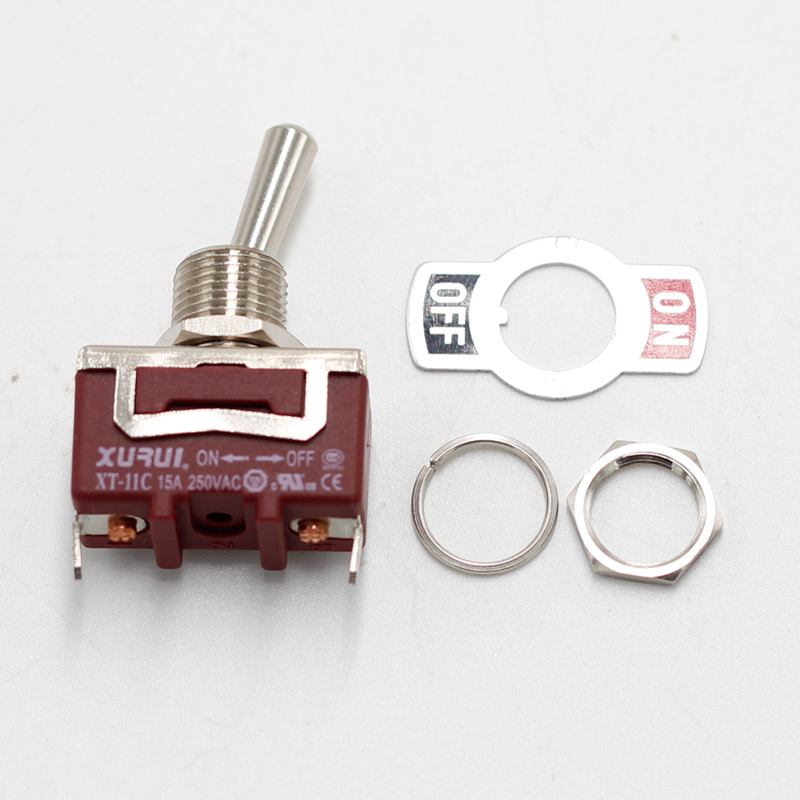

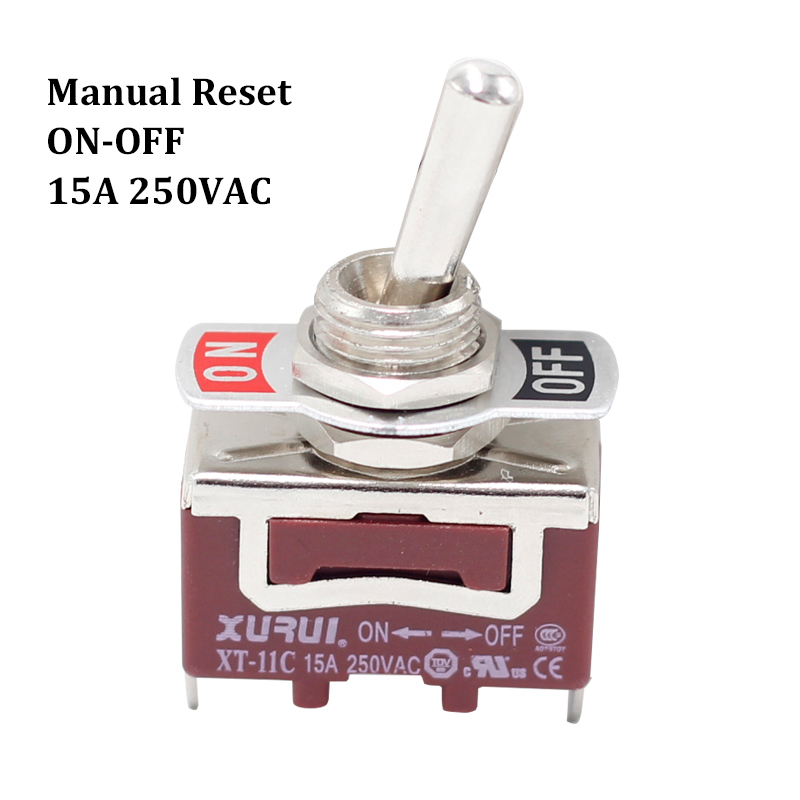

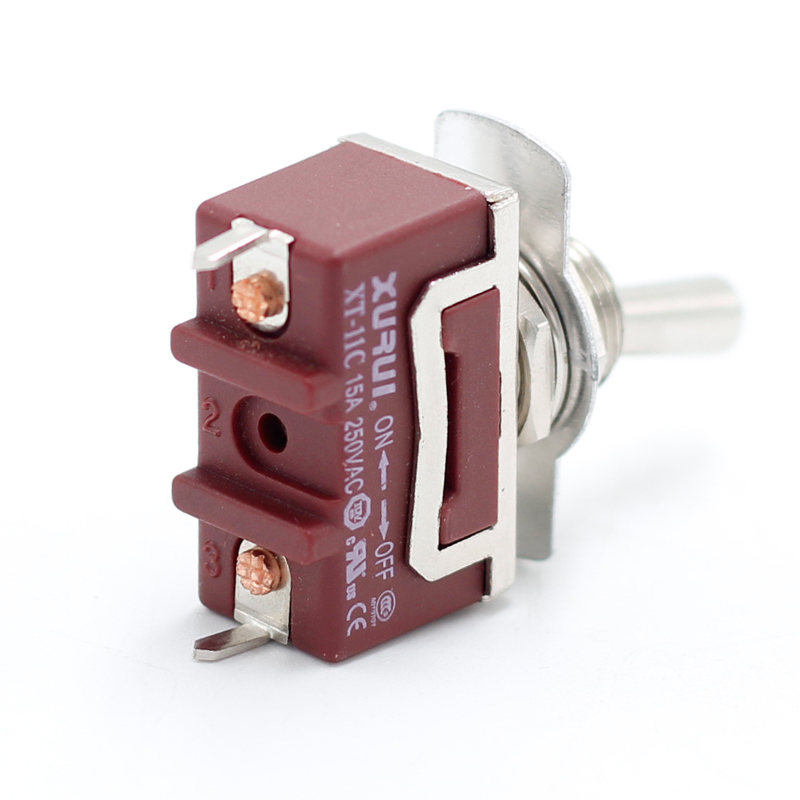

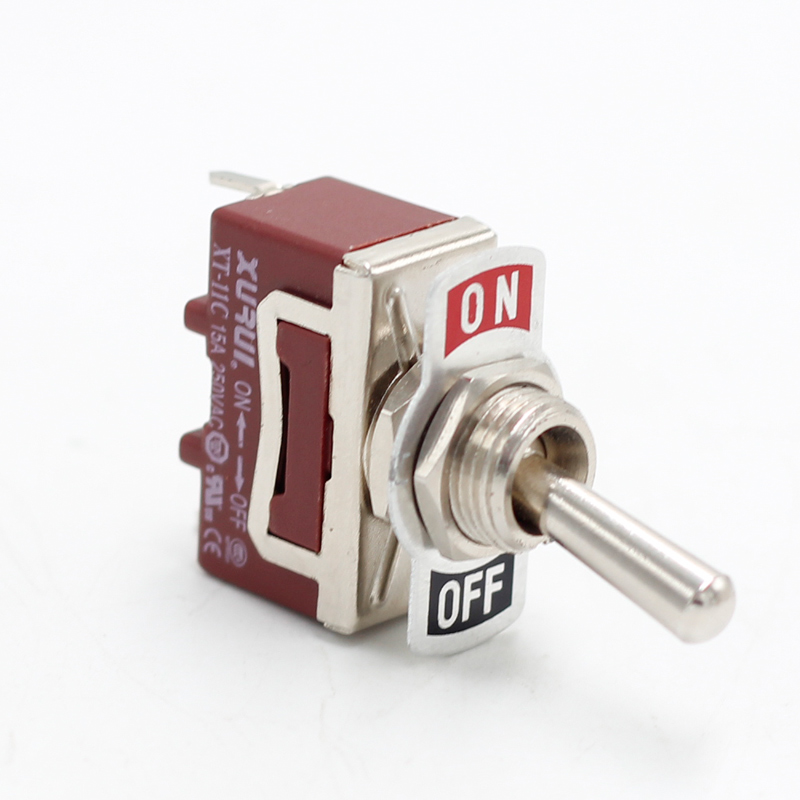

15A 12VDC solder type single pole on off toggle switch
• Adopt thermoplastic Crust,compact construction,and Simple installation.
• May install the protection cap, can again oil and dustproof.
• Hand reset and automatic reset for flexible choice.
• Widely used in Electrical equipment,automatic machine,communication equipment and instrument,electro motion tool etc.
Item | Data | |
Rating load | 15A/250VAC,25A/250VAC | |
Operating frequency | 30times/min | |
Insulation resistance | 100MΩAbove DC500V | |
Contact resistance | 25mΩ initial value | |
Withstand voltage | Non-connection wire | 1000VAC |
Every terminal | 1500VAC | |
Vibration | Misoperation | 10-55Hz Amplitude 1.5mm |
Impact | Durable | 1000m/s² |
Misoperation | 300m/s² | |
Life | Electrical | 100,000 above |
Mechanical | 500,000 above | |
Protection degree | IP40 | |
Operating temperature | -25~+80℃ | |
Operating humidity | <85% | |
