item

value

Customized

NO

Network

N/A

Customized support

CUSTOM

Place of Origin

China

Guangdong

Model Number

DB-20(1.5)

Type

Plug With Socket

Grounding

Standard Grounding

Rated Voltage

250VAC

Rated Current

16A

Application

Residential / General-Purpose

WIFI

NO

Product name

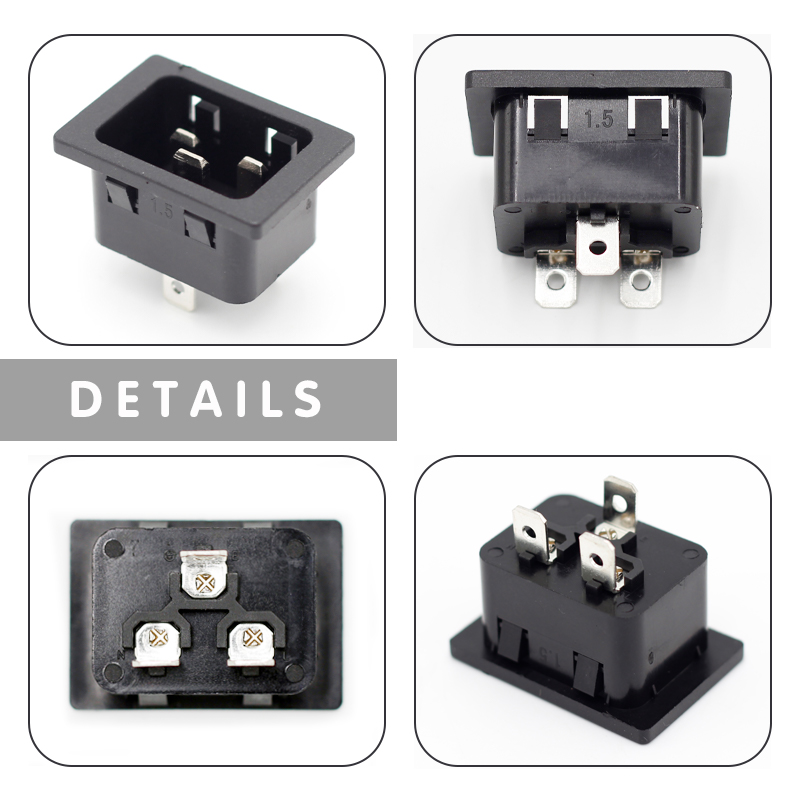

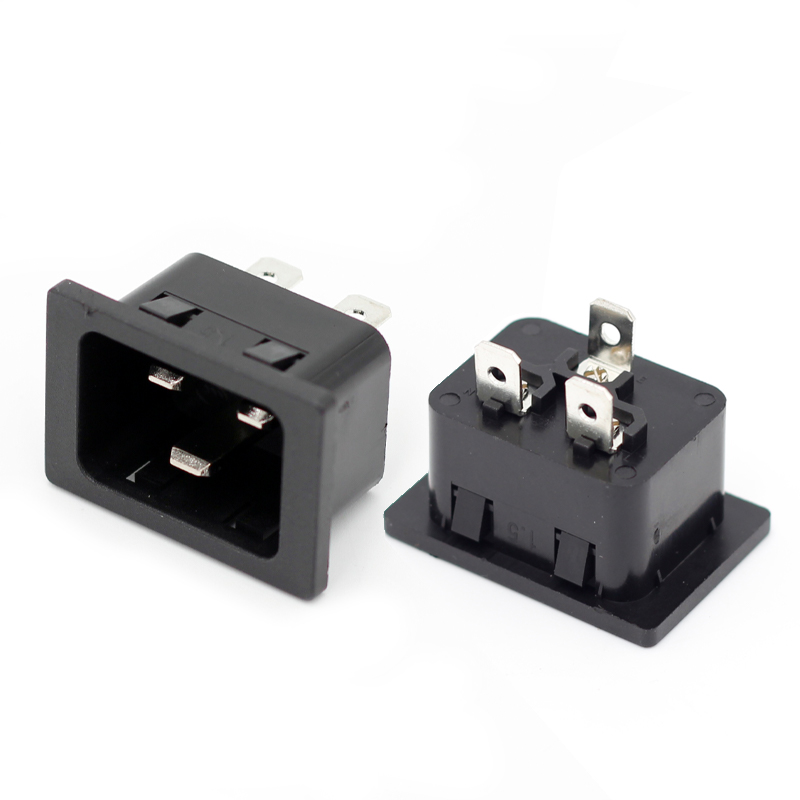

C20 Power Socket

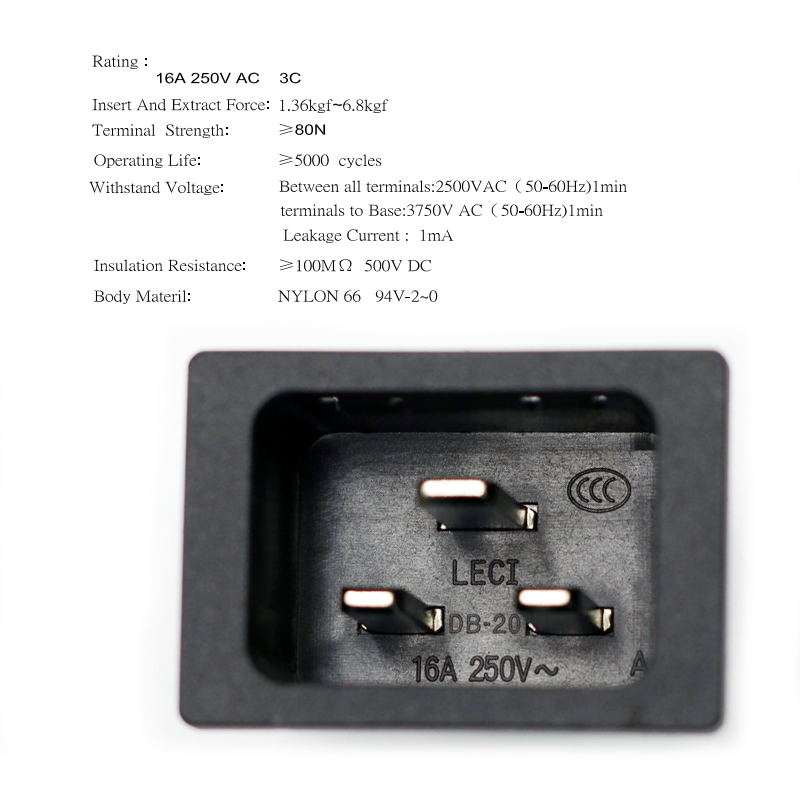

Rating

16A 250VAC 3C

Insert And Extract Force

1.36kgf~6.8kgf

Terminal Strength

≥80N

Operating Life

≥5000 cycles

Withstand Voltage

Between all terminals:2500vac(50-60Hz)1min

terminals to Base:3750vac(50-60Hz)1min

Leakage Current:1mA

Insulation Resistance

≥100MΩ 500VDC

Body Materil

NYLON 66 94V-2~0
