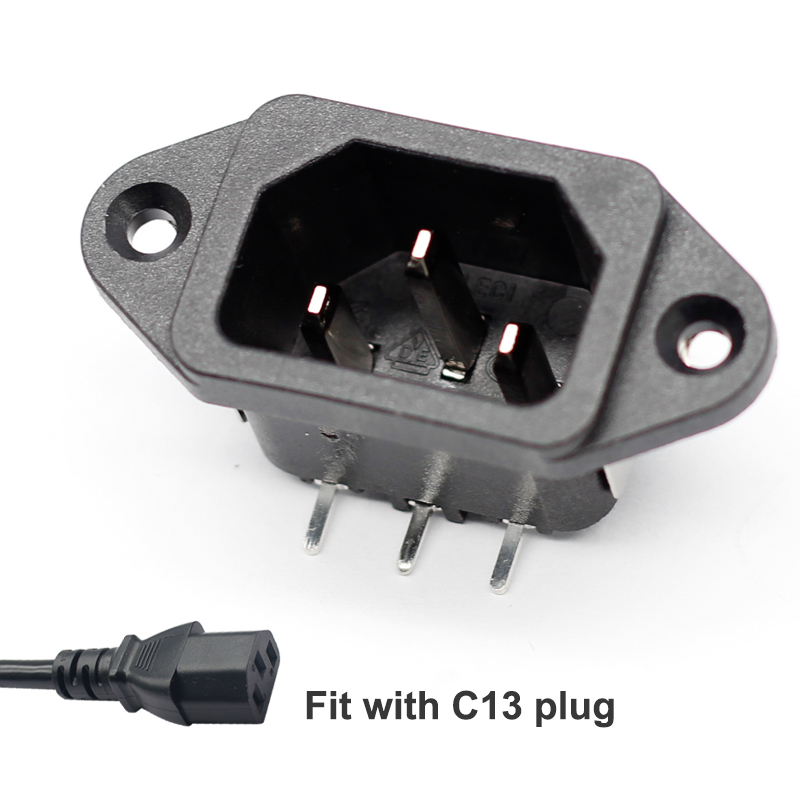

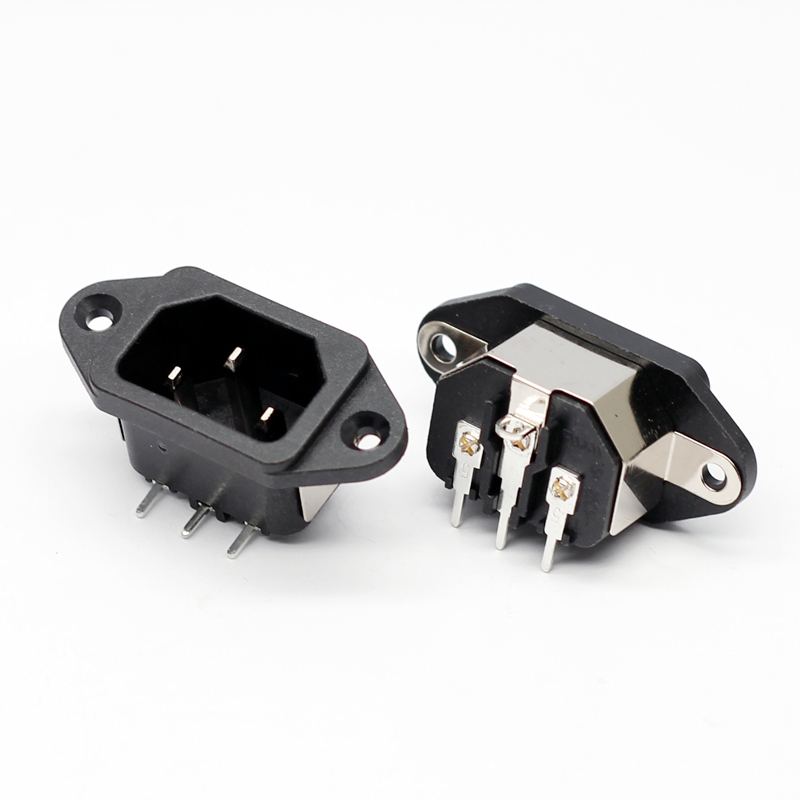

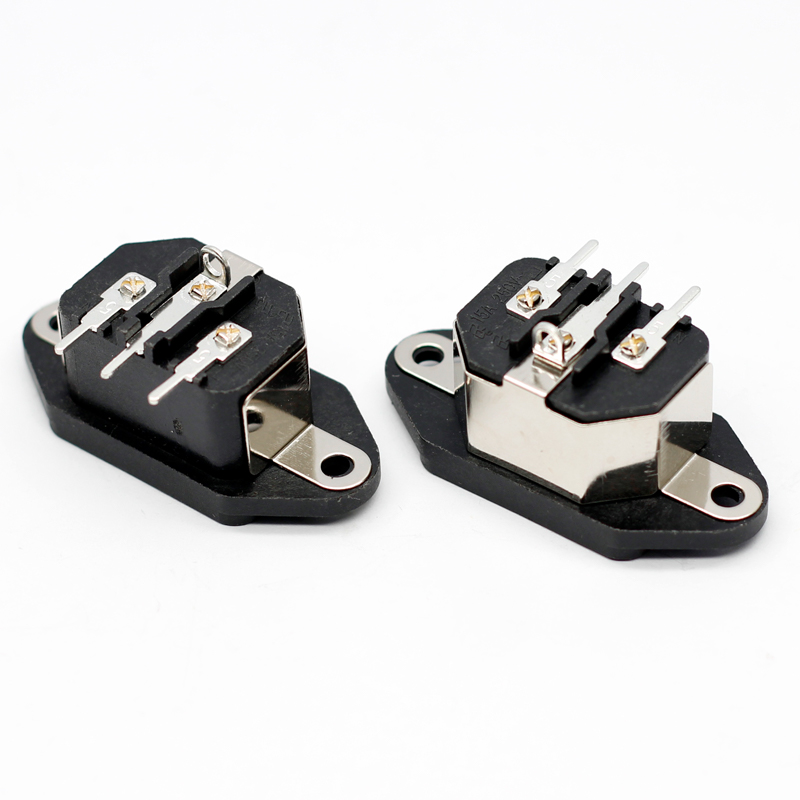

10A 15A IEC 320 C14 Panel Mount AC plug 3 PIN screw inlet electrical Charging Socket power socket With SPTE
Categories：Power socket
10A 15A IEC 320 C14 Panel Mount AC plug 3 PIN screw inlet electrical Charging Socket power socket With SPTE

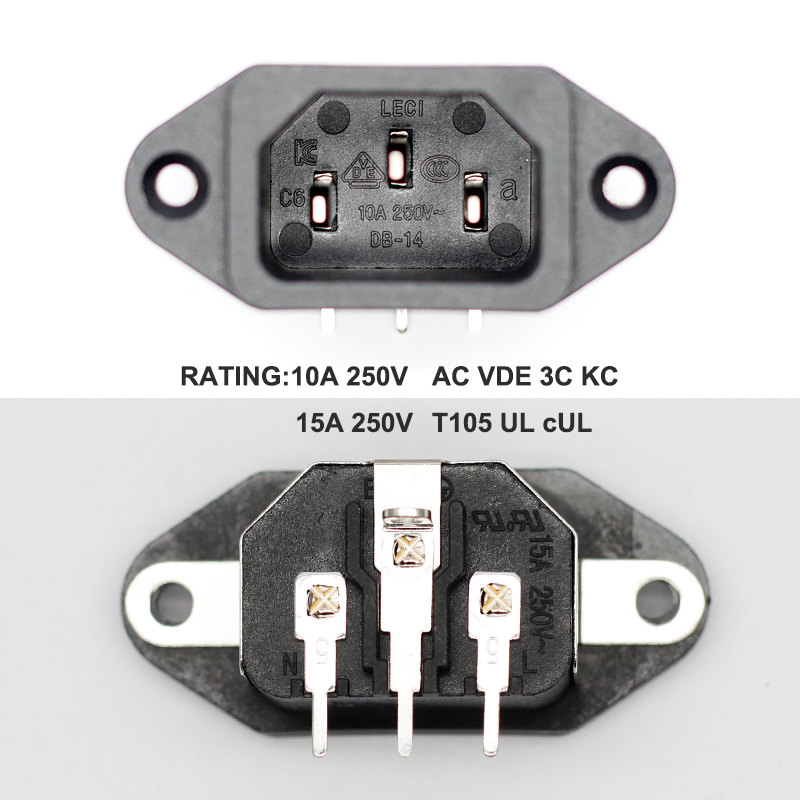

Rating | 15A 250V AC T105 UL CUL 10A 250V AC VDE 3C KC |
Insert and extract force | 1.36kgf~6.8kgf |
Opearting life | ≥5000 cycles |
Insulation resistance | ≥100MΩ 500v dc |
Body material | PBT 94V-2~0 |
Withstand voltage | Between all terminals:2500VAC(50-60Hz)1min terminals to base:3750V AC(50-60Hz)1min Leakage current:1mA |
