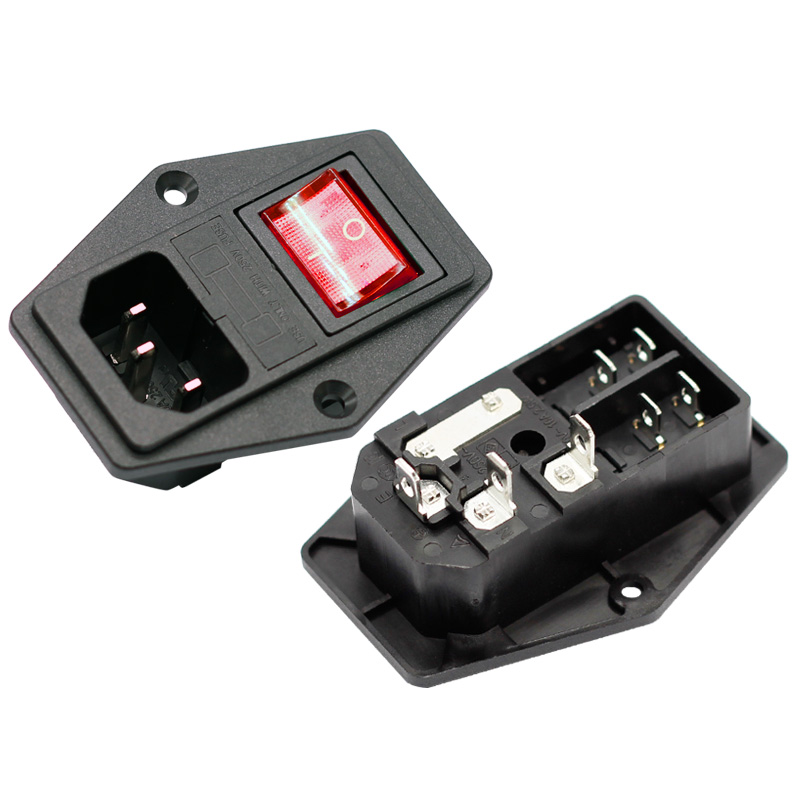

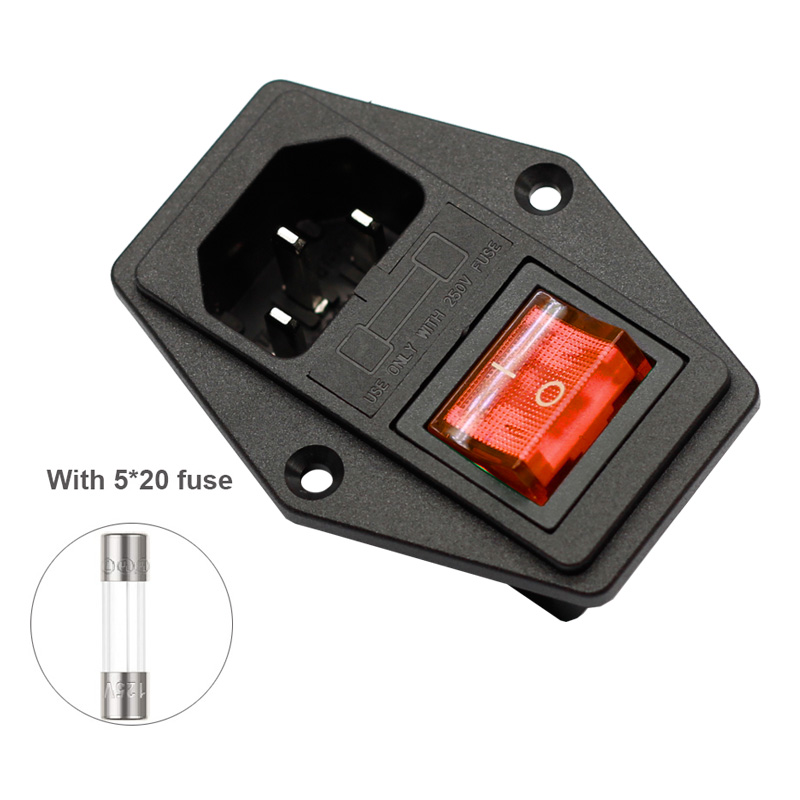

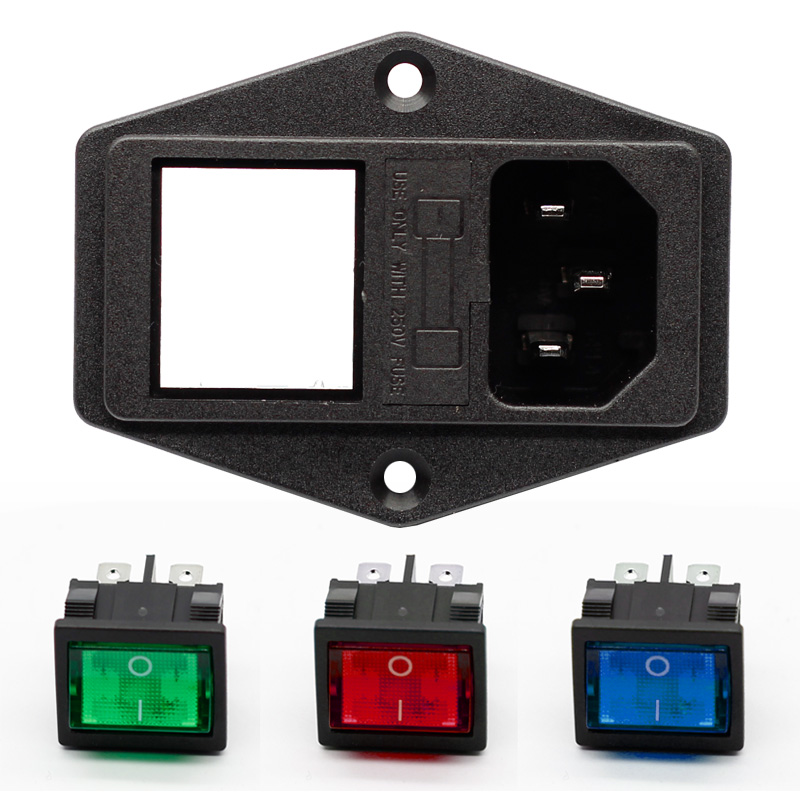

IEC320 C14 electrical switches fuse socket outlet with red lamp rocker switch 10A fuse holder socket male connector
Categories：Power socket
SOCKET
Rating | 10A 250VAC UL TUV CCC KC CQC PSE |
Insulation resistance | 100MΩ MIN AT 500V DC |
Electric strength | AC 2000V for 1min |
Housing material | PA66 UL 94V-0 |
Pin | copper alloy,nickel plated |
Terminal | copper alloy, tin plated |
SWITCH
RATING | 6A 250V 10A 125UL6(4)A 250V VDE ENEC KC |
INSULATION RESISTANCE | 100MΩ MIN AT 500V DC |
ELECTRIC STRENGTH | AC 1500V FOR 1MIN |
ELECTRIC LIFE | 10000 CYCLES MIN |
