item

value

Model Number

BSS2C-10A-T

Type

EMI Filter

Place of Origin

China

Guangdong

Transfer Function

High Pass

Nominal Center Frequency

50/60Hz

3dB Bandwidth

5-10%

Insertion Loss

30-100dB

Input Impedance

50ohm

Stopband Attenuation

20~100dB

Brand

EMI FILTER

Impedance

50Ohm

Filter Type

Single Phase

Mounting Type

Panel Mount

Inductance @ Frequency

7.5MH

Current Rating (Max)

10A

Voltage Rating - AC

250V

Current

1~10A

Voltage - Rated

115/250VAC

Voltage - Rated AC

250V

Frequency - Operating

50/60 Hz

Inductance

7.5mH

Product name

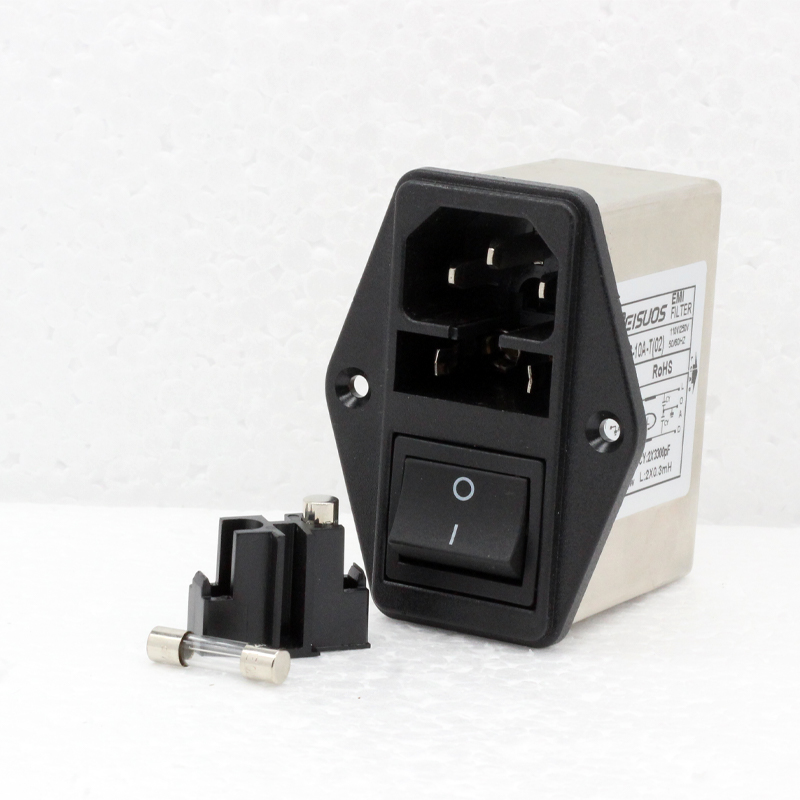

IEC980 appliance inlet and fuse holder and switch

Material

Metal+PVC

Rated current

1A, 2A, 4A, 6A, 10A

Grouded choke (optional)

Lg=400uH

Electrical schematic

general purpose/ High performance

Safety compliance

US&EU

Leakage Current

450-600uA

Features

Fast-on tab

type of switch

black rocker switch/ red rocker switch/ green rocker switch
