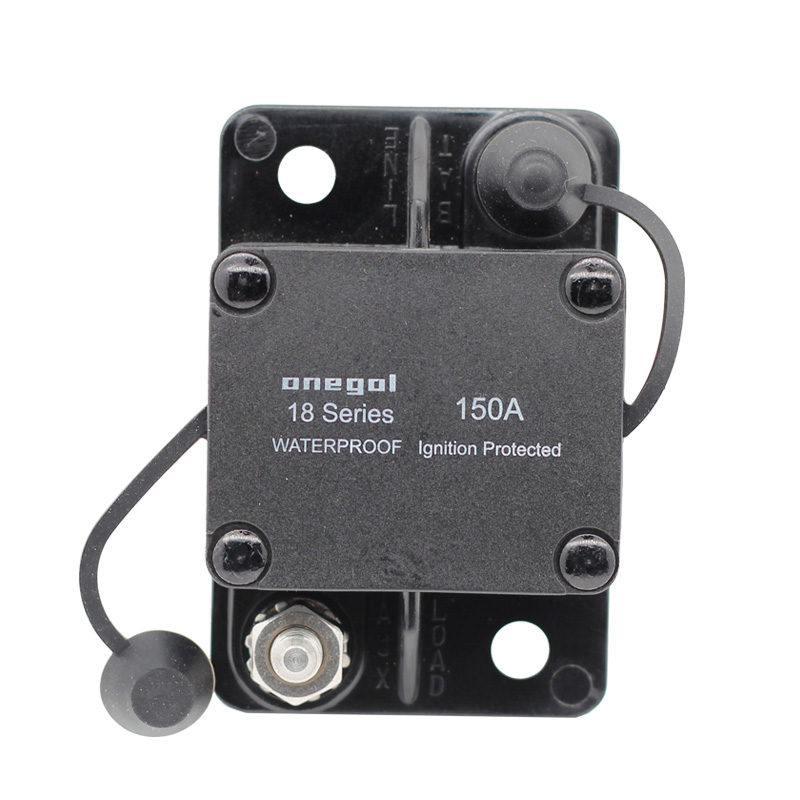

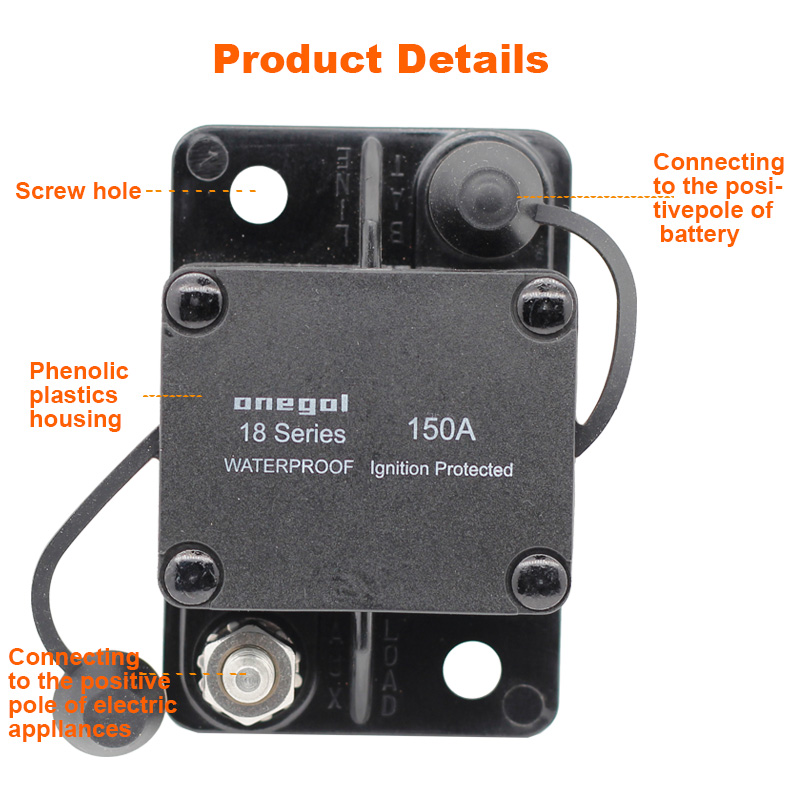

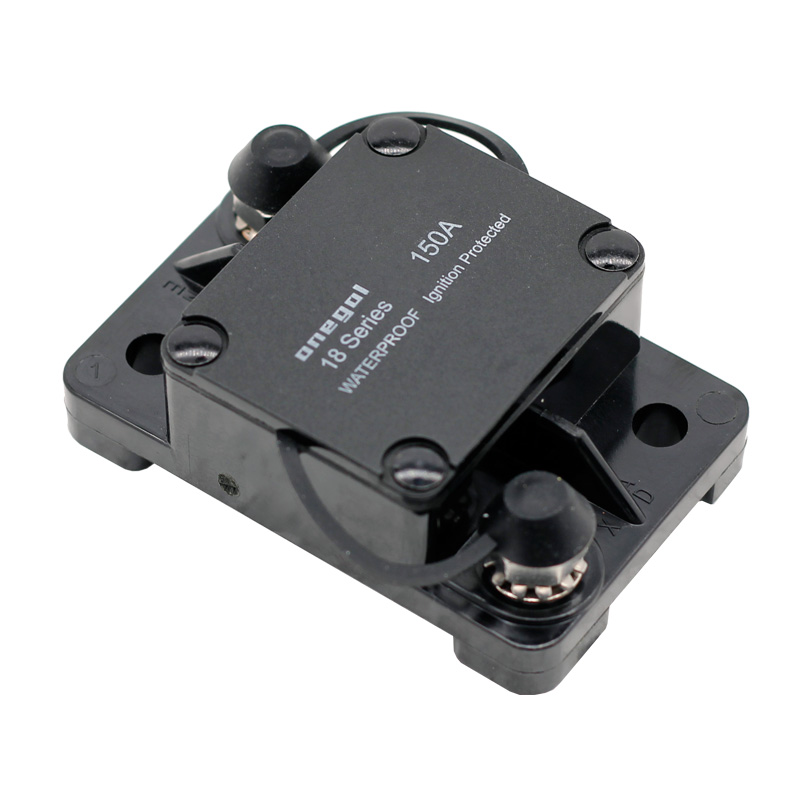

30A 40A 50A 60A 70A 80A 100A 120A 150A 200A AMP Fuse Reset 12-48V DC Car Boat Auto Waterproof Circuit Breaker
Categories：Circuit breaker
Feature:
High amp thermal trip circuit breakers with a manual reset switch suitable for use on auxiliary DC electrical systems. Ideal for use in harsh environments, like motorsport, to provide protection in the event of current overload or short circuit.
Protective rubber caps prevent unnecessary short circuits.
Switchable surface mount circuit breakers typically found in auxilliary and accessory circuits in trucks, buses, motorhomes & marine systems.
Sealed, waterproof unit suitable for use in engine compartments and Bilge area's.
Manual trip switch enables quick disconnecting of the circuits in case of emergency.
Connection Stud Size - M6 x 2 - Nuts supplied with integral lock washers to prevent loosening due to vibration.
Specification:
| Circuit rating: | 30A,40A,50A,60A, 70A, 80A, 90A, 100,120A, 140A, 150A, 200A, 250A, 300A (Optional) |
| Voltage rating: | 12-48V DC |
| nterrupt rating: | 3000A@30V DC |
| Operating temperature: | -32°C to 82°C |
| Storage temperature: | -34°C - 149°C |
| Number of Poles: | 2 |
| Weatherproof rating: | IP65 |
| Material: | Housing is thermal plastic UL rated 94V0 |
