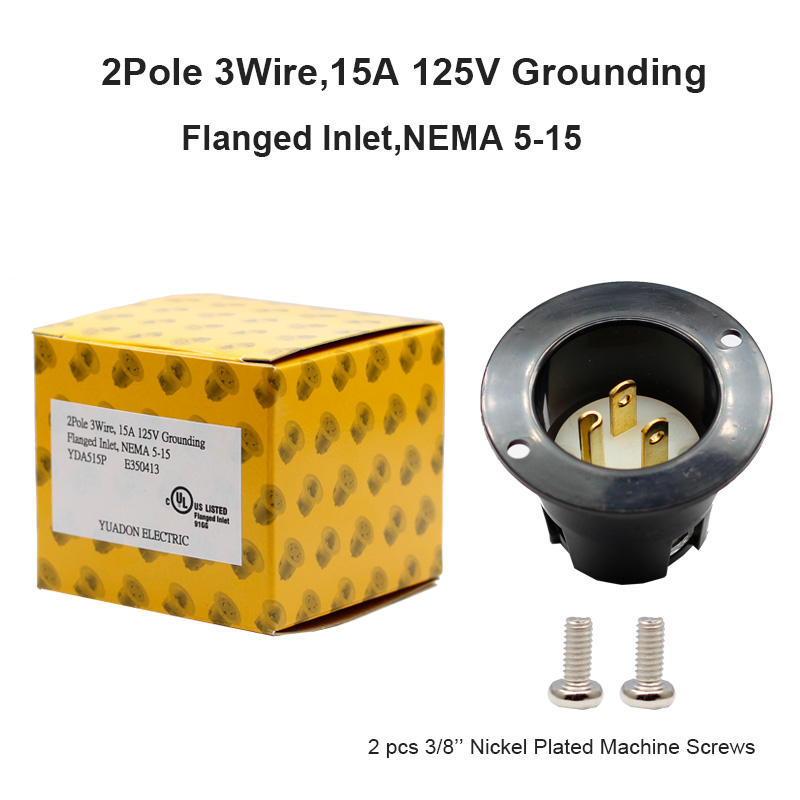

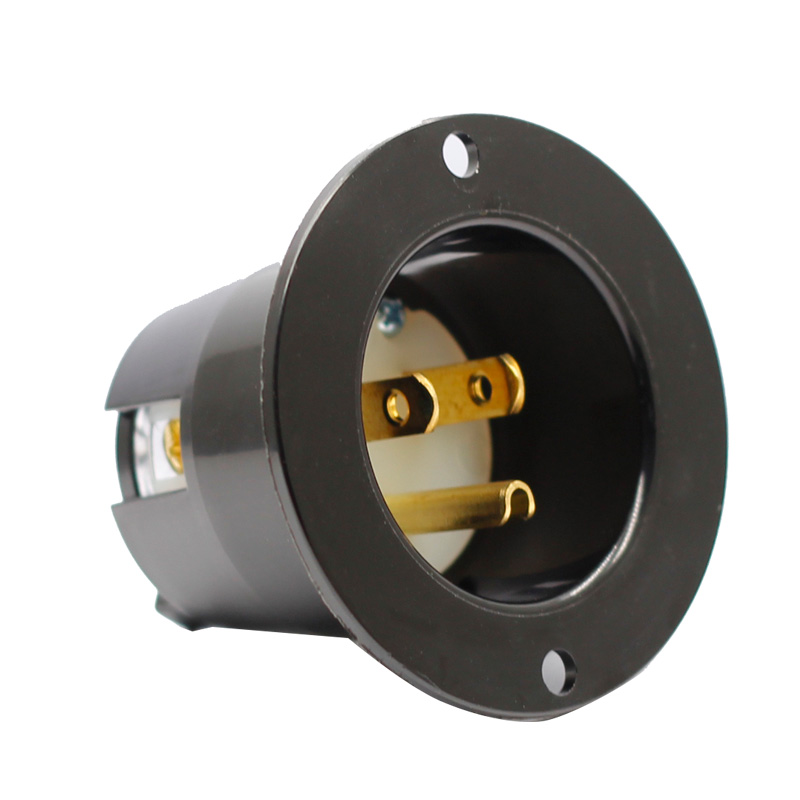

Black Commercial Grade 15 Amp 125 Volt NEMA 5-15 Straight Blade Flanged Inlet Receptacle

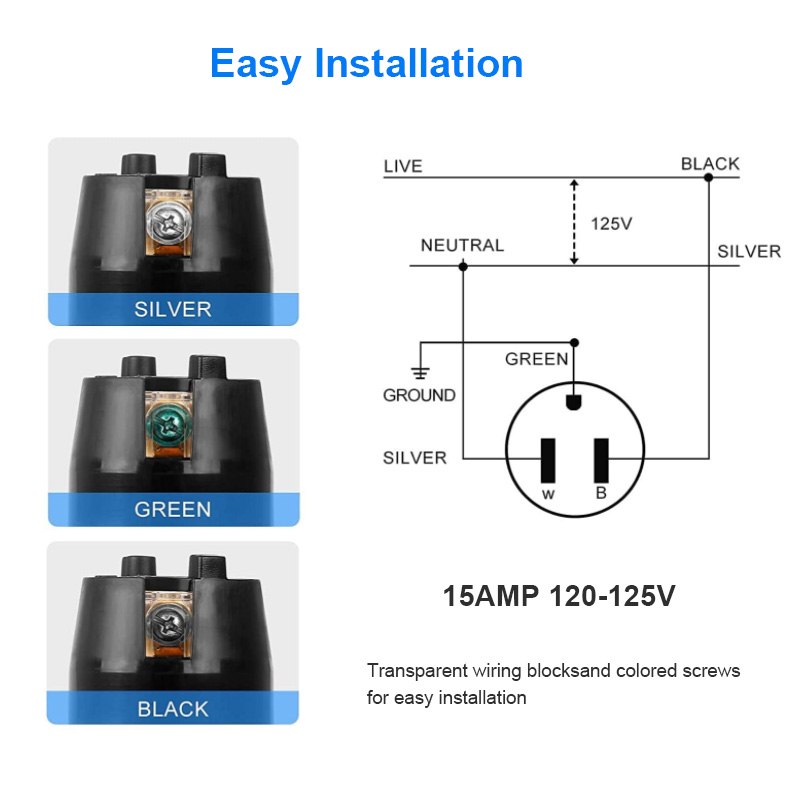

15A and 20A Flanged Inlets and Outlets Wiring Instructions I. Cable Selection: Provide a cable of applicable ampacity, service, and temperature rating suitable for the conditions of use and location. The flanged inlets and outlets are designed for use with 3-wire cables (18/3 SJ through 12/3 S).

2. Cablé Prep: Strip the cord as shown in Figure I. below. Make sure the wire is clean, and a bright copper color. Do not solder the ends of the wire 1/2° (12.7 mm)

* 15 Amp 125 Volts AC 2-Pole 3-Wire Flanged Inlet Rated Up To 1875 Watts
* Super Tough Black Nylon Body Resists Damage From UV Degradation, Severe Impact, Abrasion, Chemicals

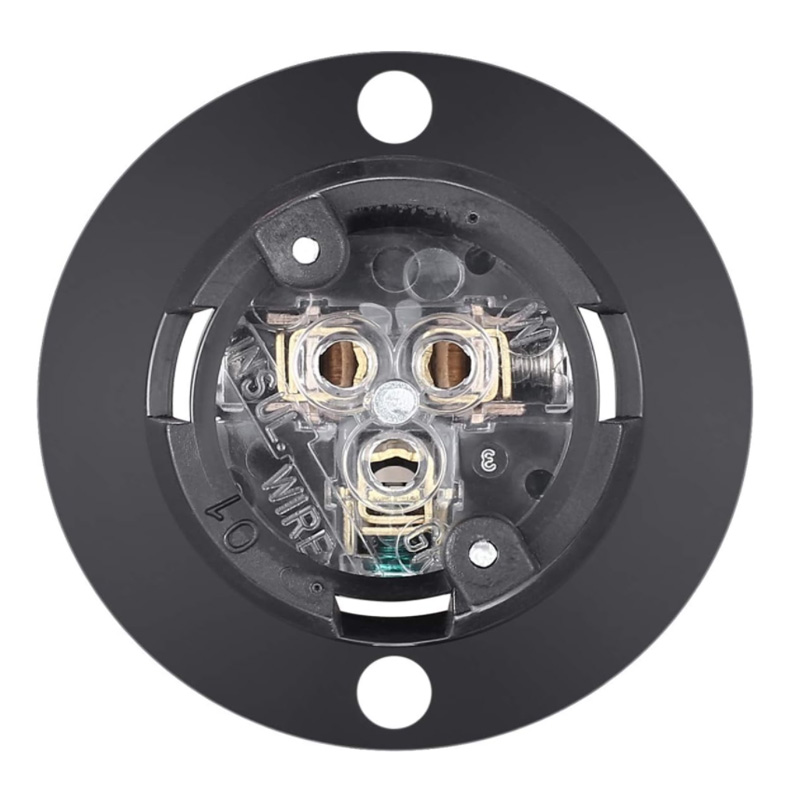

* Clear See-Thru Wiring Block & Color Coded Positive Crimp Lock Wire Clamps Make Wiring Easy
* cUL Listed Approved Plug , Accomadates 10-14 AWG Gauge Wiring
* Built To The Highest Quality with Lifetime No-B.S. Warranty!
