45*45 USA standard NEMA 5-15R IEC 15A 125V AC power American socket 3 PIN plug PDU socket connector with certification
45*45 USA standard NEMA 5-15R IEC 15A 125V AC power American socket 3 PIN plug PDU socket connector with certification1
45*45 USA standard NEMA 5-15R IEC 15A 125V AC power American socket 3 PIN plug PDU socket connector with certification2
45*45 USA standard NEMA 5-15R IEC 15A 125V AC power American socket 3 PIN plug PDU socket connector with certification3
45*45 USA standard NEMA 5-15R IEC 15A 125V AC power American socket 3 PIN plug PDU socket connector with certification4
45*45 USA standard NEMA 5-15R IEC 15A 125V AC power American socket 3 PIN plug PDU socket connector with certification5

45*45 USA standard NEMA 5-15R IEC 15A 125V AC power American socket 3 PIN plug PDU socket connector with certification

Categories:Power socket

MATERIAL

HOUSING & COVER

PA(BLACK), UL 94V-0

TERMINAL

COPPER ALLOY, TIN PLATED

CHARACTERISTICS

RATING

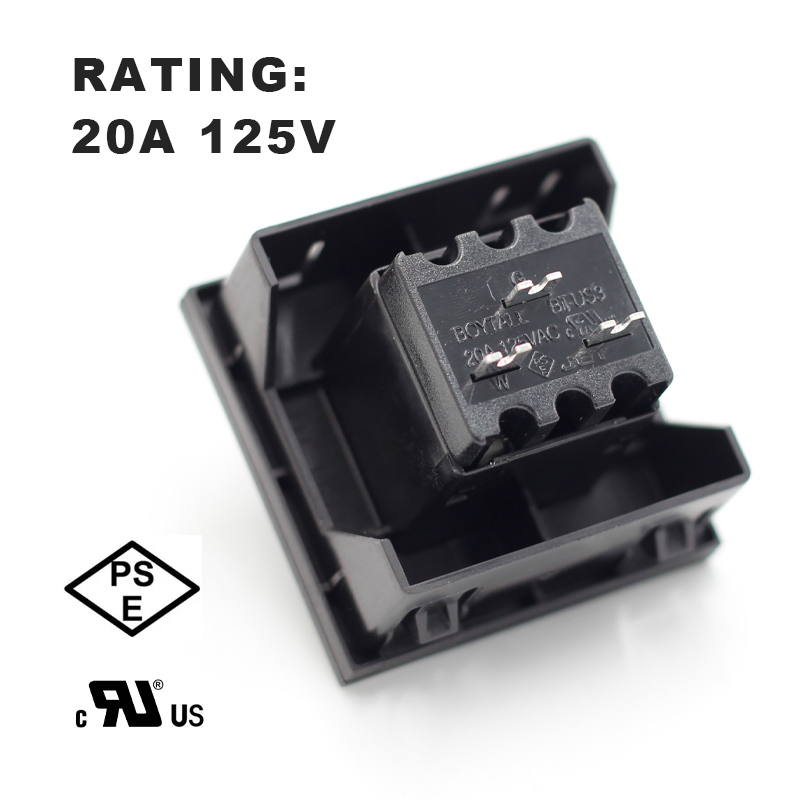

20A 125V~ UL, PSE

INSULATION RESISTANCE

100MΩ MIN, AT 500V DC

ELECTRIC STRENGTH

AC 2000V FOR ONE MINUTE

APPROVALS

UL, PSE
