Superior Quality NEMA L14-30P Locking Inlet 4 Prong 125V Industrial Grade Flanged Inlet
Categories：Power socket
item | value |
Customized | Yes |
Network | N/A |
Customized support | YES |
Place of Origin | China |
Guangdong | |
Brand Name | Beisuos |
Model Number | LK-6431FI |
Type | Plug With Socket |
Grounding | Standard Grounding |
Rated Voltage | 125/250VAC |
Rated Current | 30A |
Application | Industrial |
WIFI | NO |
Product Style | 3 Pole, 4 Wire, Flanged Inlet |
Rating | 30A 125/250V AC 60HZ |
Color | White Black |
Configuration Type | NEMA L14-30P |
Material | Nylon / PBT |
Terminal Clamp | 1.8mm Copper Alloy |
Terminal Screws | #10 Screws Bronze |
Ground Contact | 1.8mm Copper Alloy |
Ground Screws | #10 Screws Bronze (Green) |

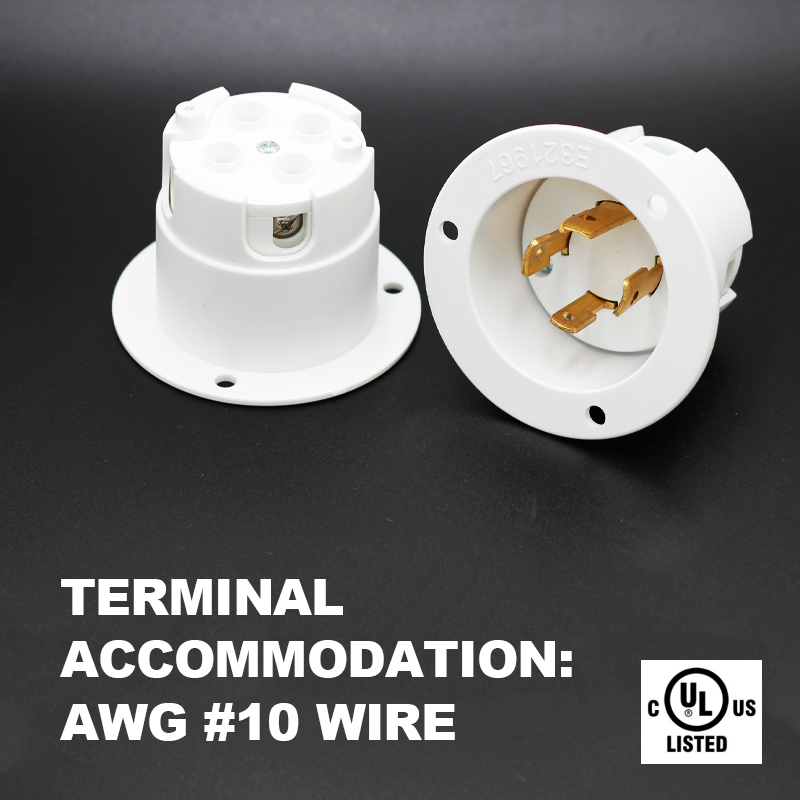

Terminal Accommodation | AWG #10 wire |
Thread Body Design For Hole Tightened

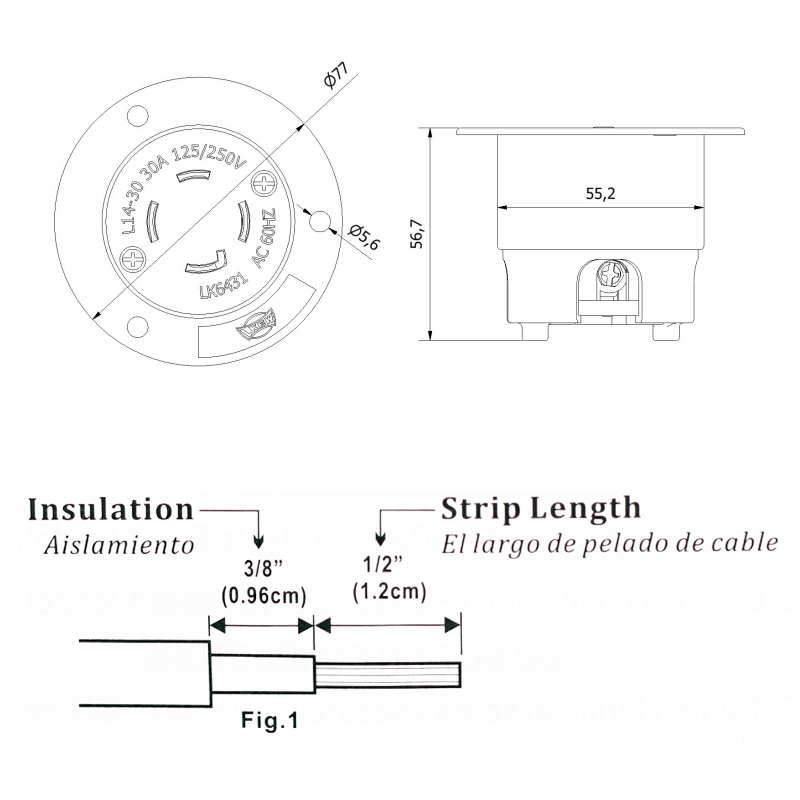

NEMA L14-30P Flanged Inlet

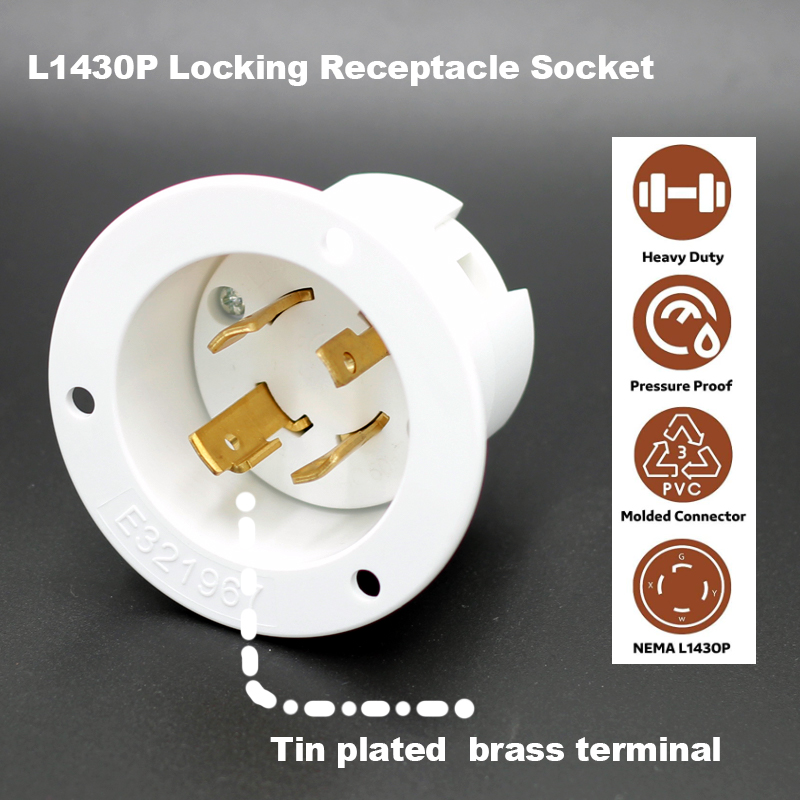

No oxidation for the Nickel coated copper pole on the plug, made of premium copper and Nylon plastic to avoid the damage of UV degradation and chemicals, rugged and durable for indoor and outdoor.

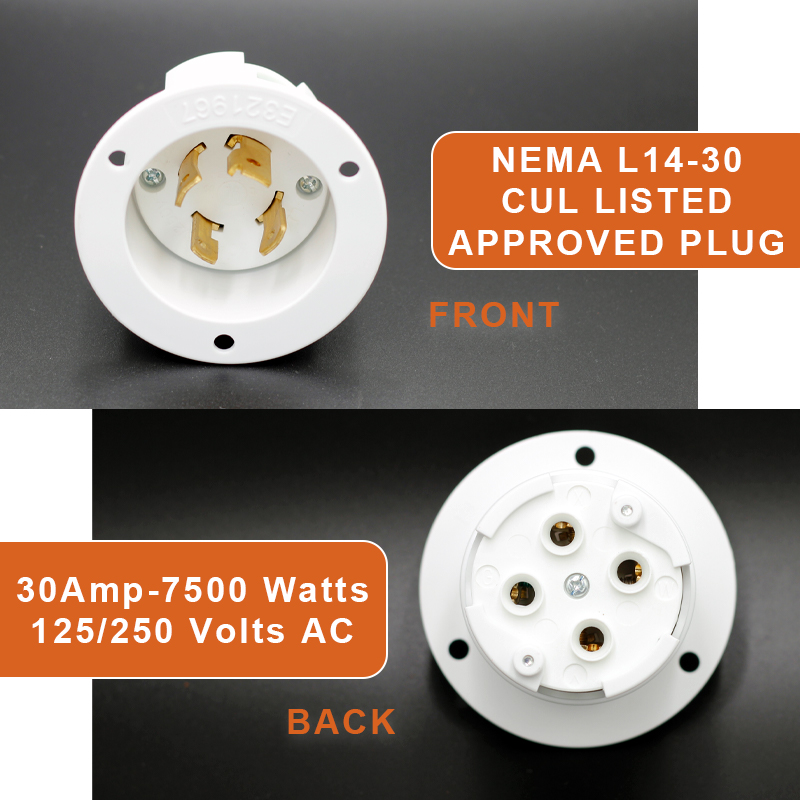

* cUL approved, Come with dust cover protect terminal against the rain storm, snows, dust and even works well, without crack and leak.
