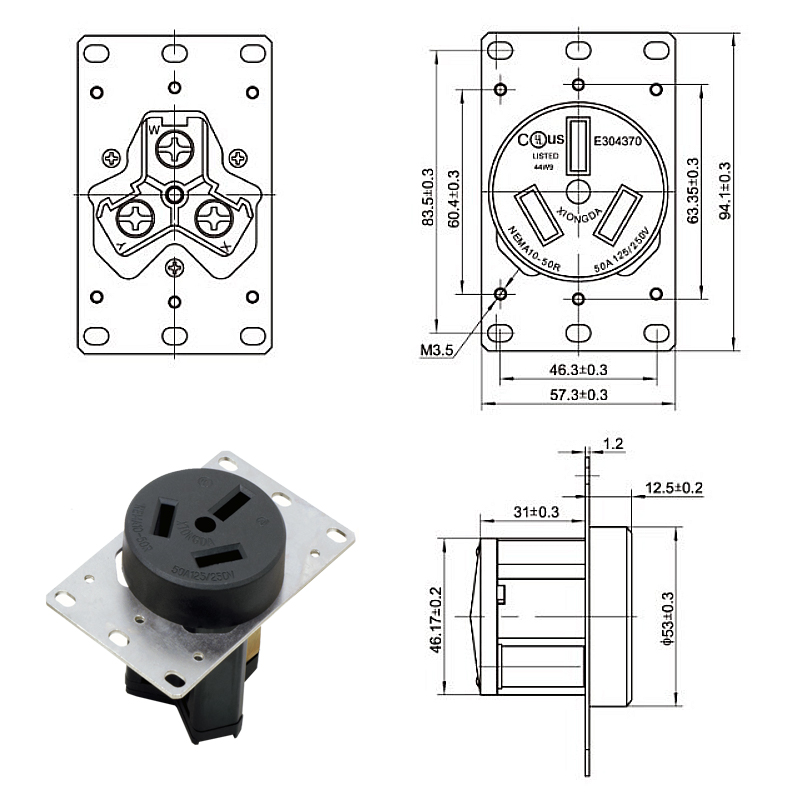

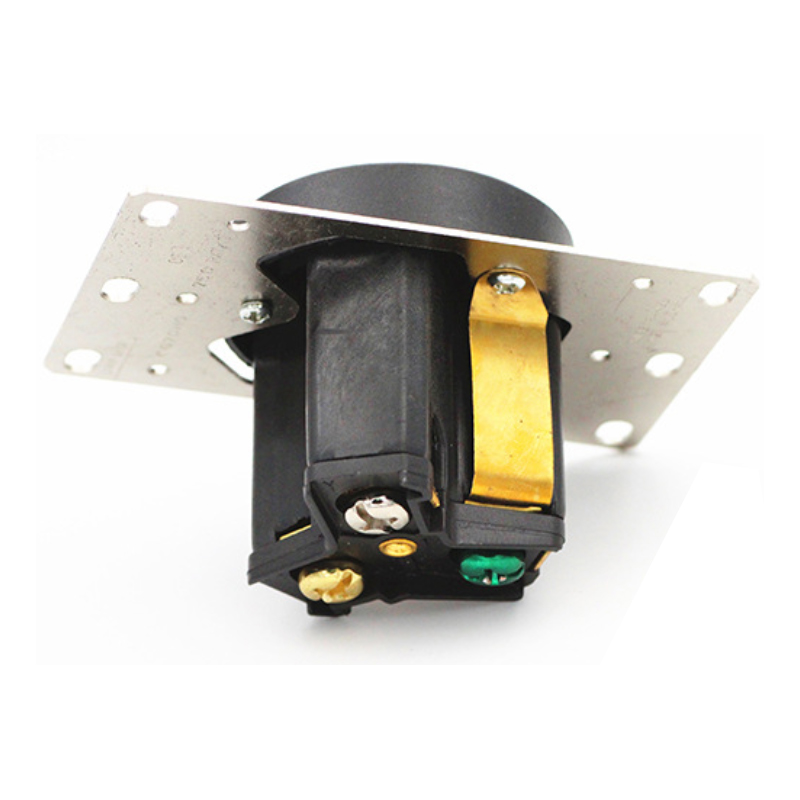

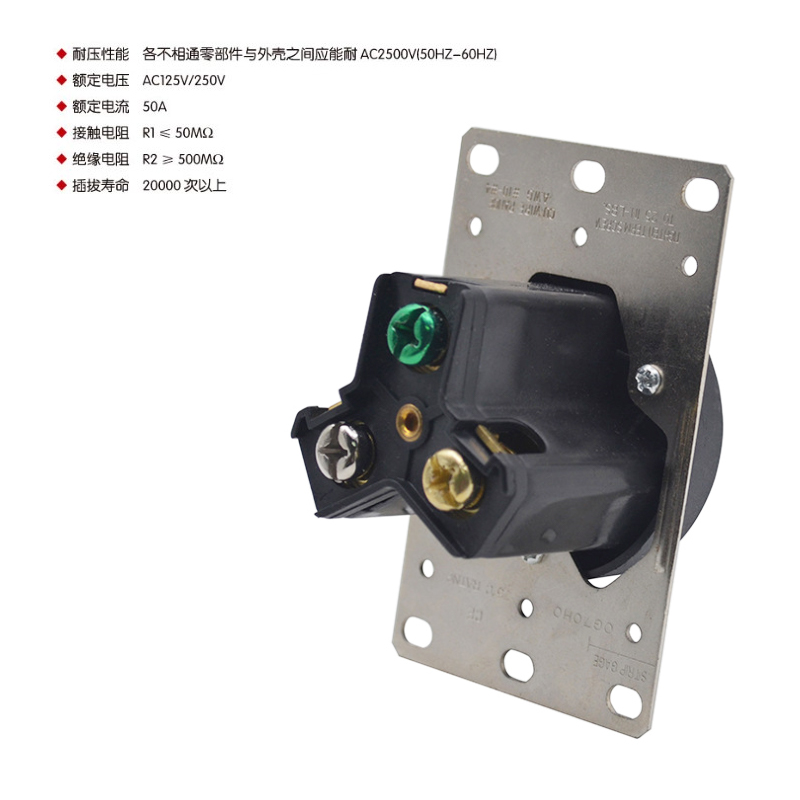

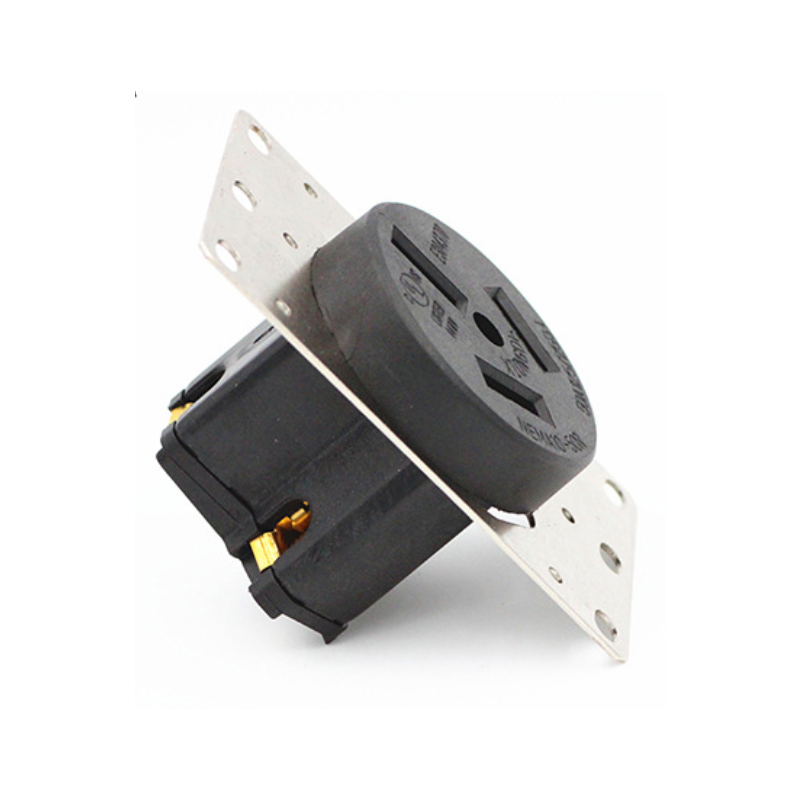

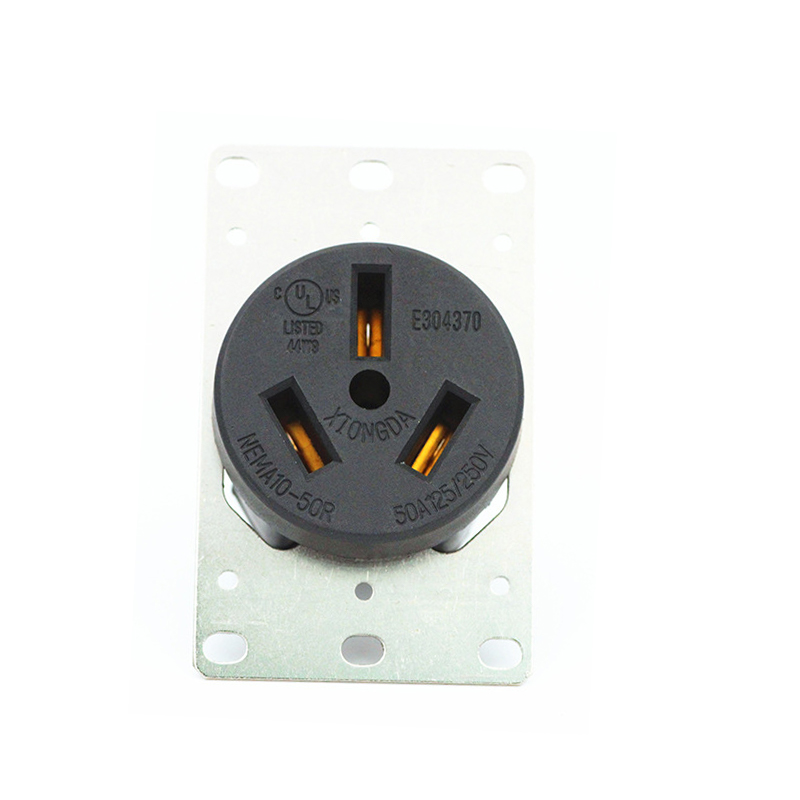

Manufacturer 125V 250V 30A Nema 10-50R twist lock female receptacle wall socket
Categories：Power socket
Product name | NEMA 10-50R |
Voltage | 250V 50A |
Shell material | pa66 |
Conductor material | phosphor blue |
Withstand voltage performance | AC2500 50HZ-60HZ |
Contact resistance | R ≤ 50Moh |
Insulation resistance | R2 ≥ 500Moh |
Plugging life | more than 20000 times |
Function | Electrical Outlet Connection |
Standard | USA Standard |
