Features

• •Technical data

  Current rating range	2~20A
  Input voltage rating	125/250VAC; 50VDC
  Interrupting Capacity	125/250VAC x 1,000A
  Typical life	1,000 operations at 200% overload
  Insulation co-ordination	Rated impulse withstand voltage 2.5kV
  Dielectric Strength	> 1,500VAC/min
  Insulation Resistance	>100MOHM (DC 500V)
  Degree of protection	Terminal area IP00,operating area IP40

•  •Mechanical/Environmental Data

  • Operating Ambient Temperature: -10 to +60℃℃


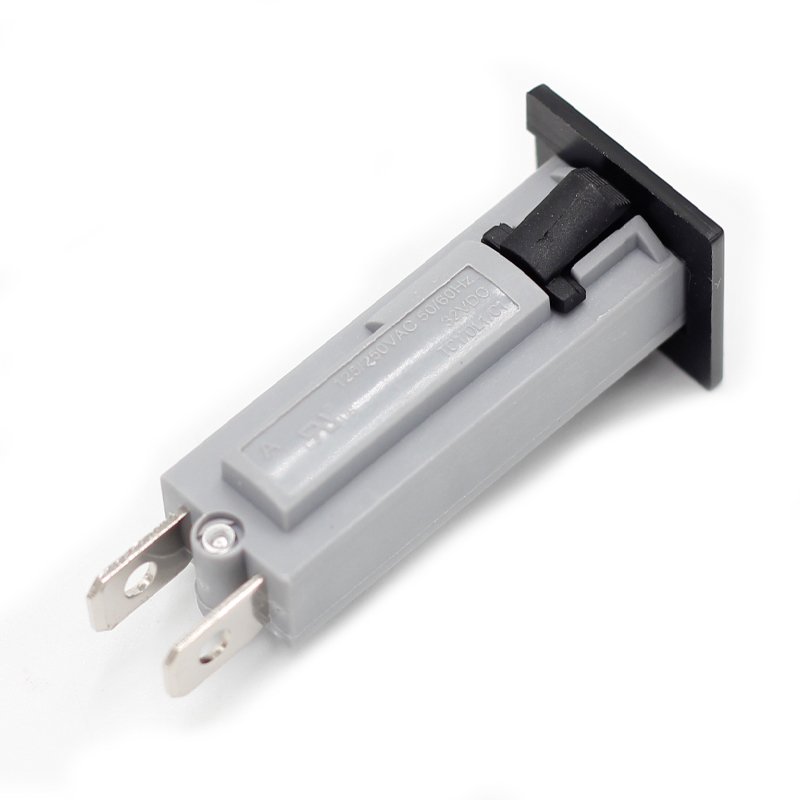

  •Termination: 250’’(6.35mm)quick connects or solder terminals

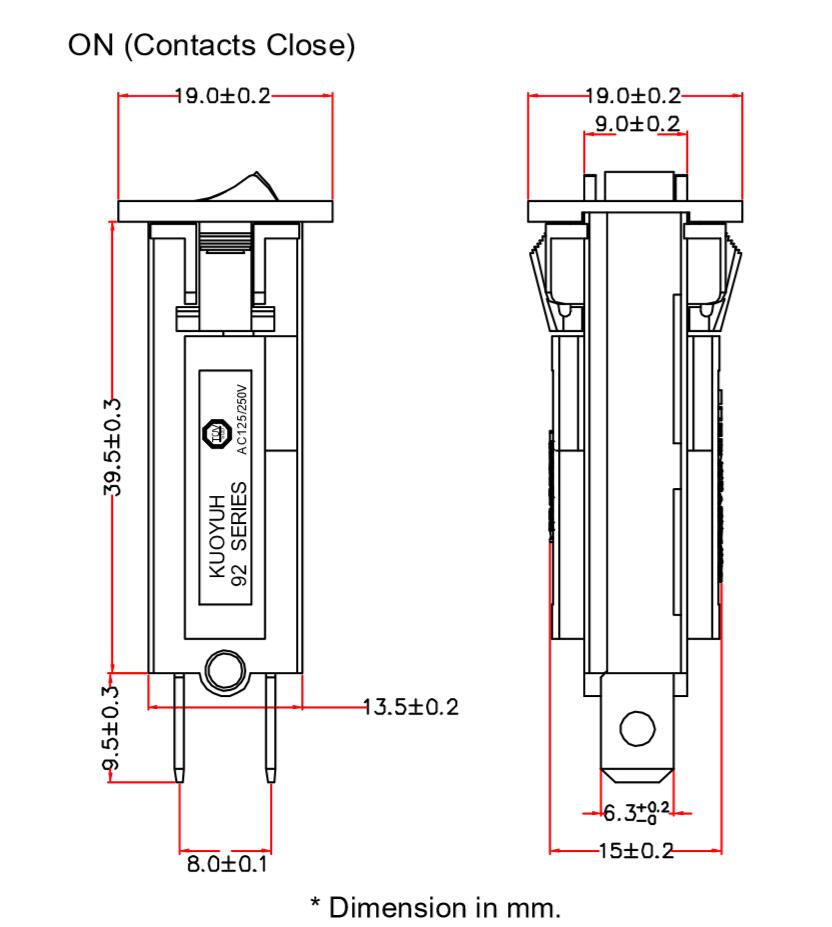

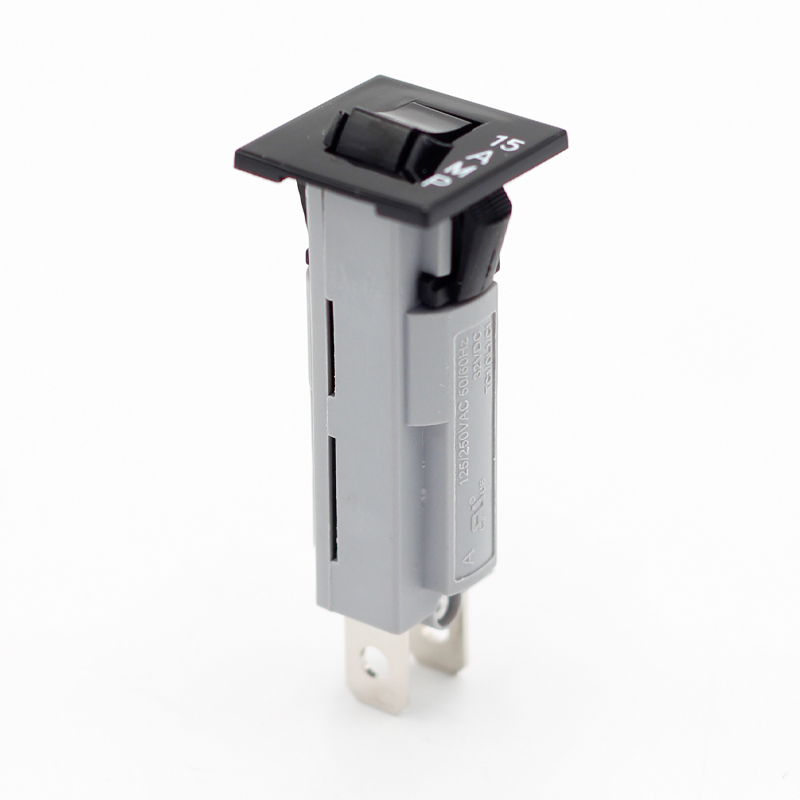

  • Mounting: Various options. See Ordering Information and drawings



  •Typical applications


  Tarnsforms, Motors, Battery chargers, Power supplies,

  appliances, extra low voltage systems, machinery



  •Calibration(at25℃)

  Rated: 0.25~2.5A


  •100% of Rated Current:      Hold , No Trip

  •150% of Rated Current:      Trip Within 1 Hour

  •200% of Rated Current:      7.5-52 sec Trip

  •300% of Rated Current:      2.85-10 sec Trip


  Rated: 3~16A


  •100% of Rated Current:      Hold , No Trip
  •200% of Rated Current:      5.2-30.0 sec Trip

  •300% of Rated Current:      1.5-5.0 sec Trip

  •135% of Rated Current:      Trip Within 1 Hour

•


• •Approval

  •Approval & File No.	Rated current	Rated voltage
  •CUL UL E155159	0.25-16A	125/250VAC; 50VDC
  •TUV SUD B150158611006	0.25-16A	125/250VAC
  •CCC	0.5-16A	125/250VAC
  •VDE	0.5-16A	125/250VAC
