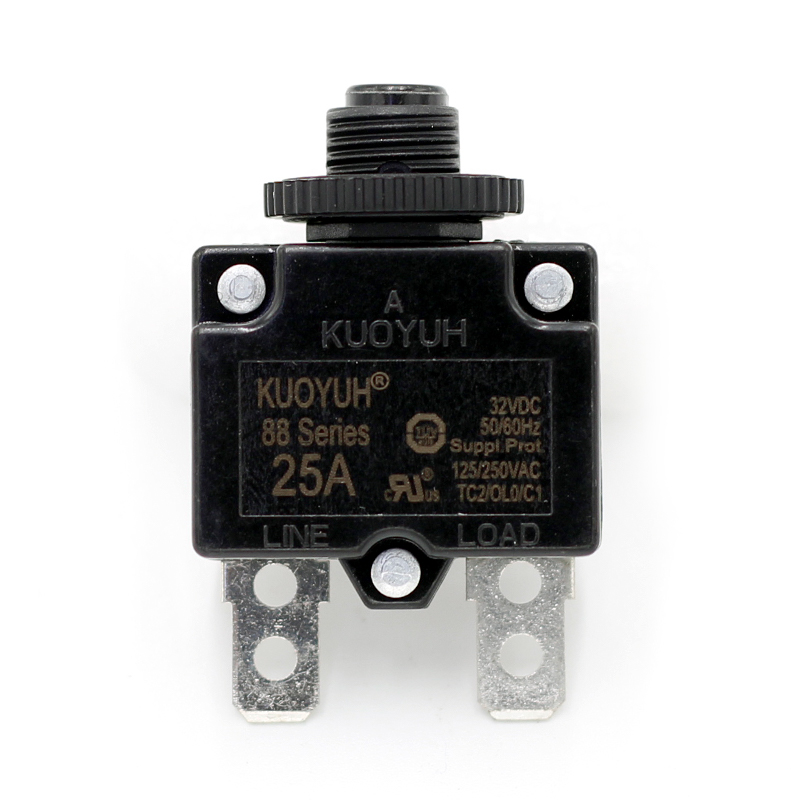

Technical data
Current rating range:3~30A
Input voltage rating :125/250VAC; 32/50VDC
Interrupting Capacity : 125/250VAC x 1,000A(UL 1077)
Typical life : 1,000 operations at 200% overload
Insulation co-ordination:Rated impulse withstand voltage 2.5kV
Dielectric Strength:> 1.500VAC/min.
Insulation Resistance:>100MOHM (DC 500V)
Degree of protection:Terminal area IP00, operating area IP40

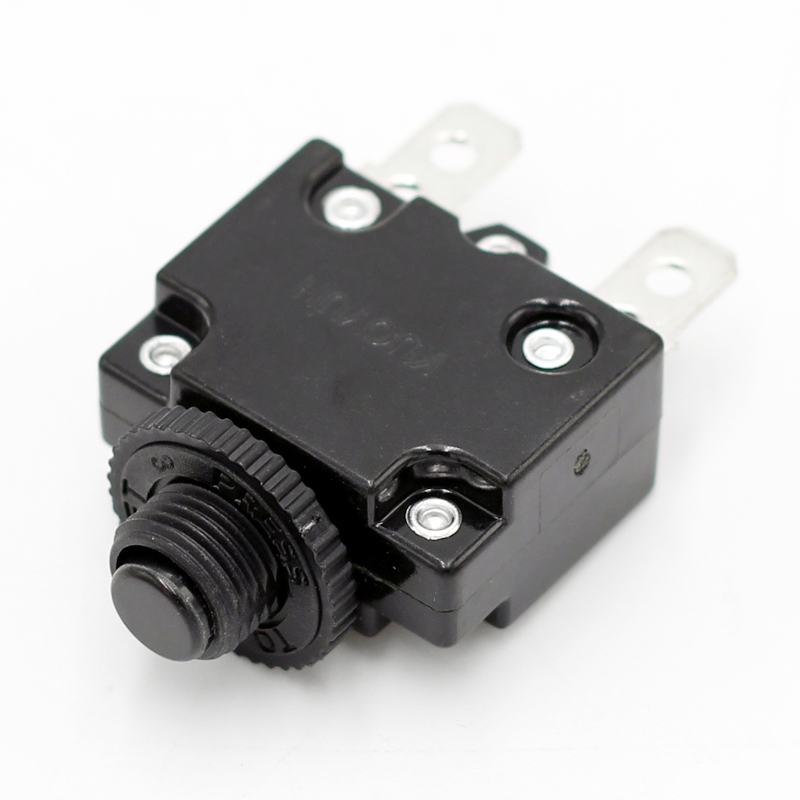

Mechanical/Environmental Data

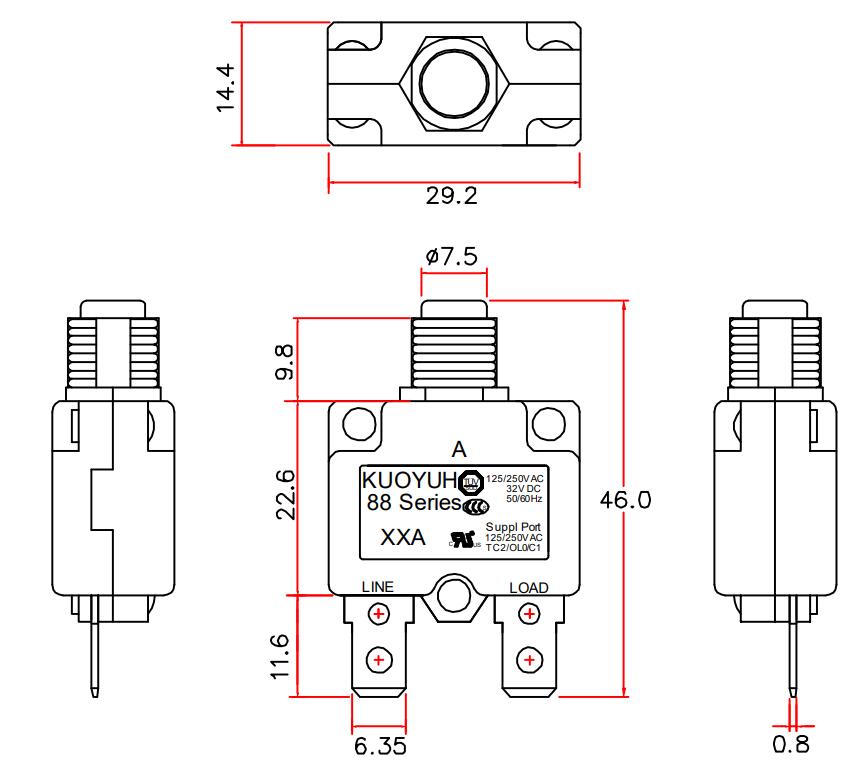

Operating Ambient Temperature: -10℃ to +60℃ Mounting: Various options. See Ordering Information and drawings
Termination: 250’’(6.35mm）quick connects or solder terminals

Calibration(at25℃)
100% of Rated Current: Hold , No Trip 300% of Rated Current: 1.5-5.0 sec Trip •
200% of Rated Current: 5-30 sec Trip •
150% ofRated Current: Trip Within 1 Hour

Approval

Approval & File No                Rated current                    Rated voltage

CUL UL E155159                           3- 30A                        125/250VAC; 50VDC

TUV SUD B15 09 58611 007       3-20A                        125/250VAC; 32VDC
VDE 40036160                              3-16A                         125/250VAC
CSA 102199                                  3-16A                          250VAC
IEC 60934                                      3-20A                          250VAC

Typical applications
Tarnsforms, Motors, Battery chargers, Power supplies, appliances, extra low voltage systems, machinery
