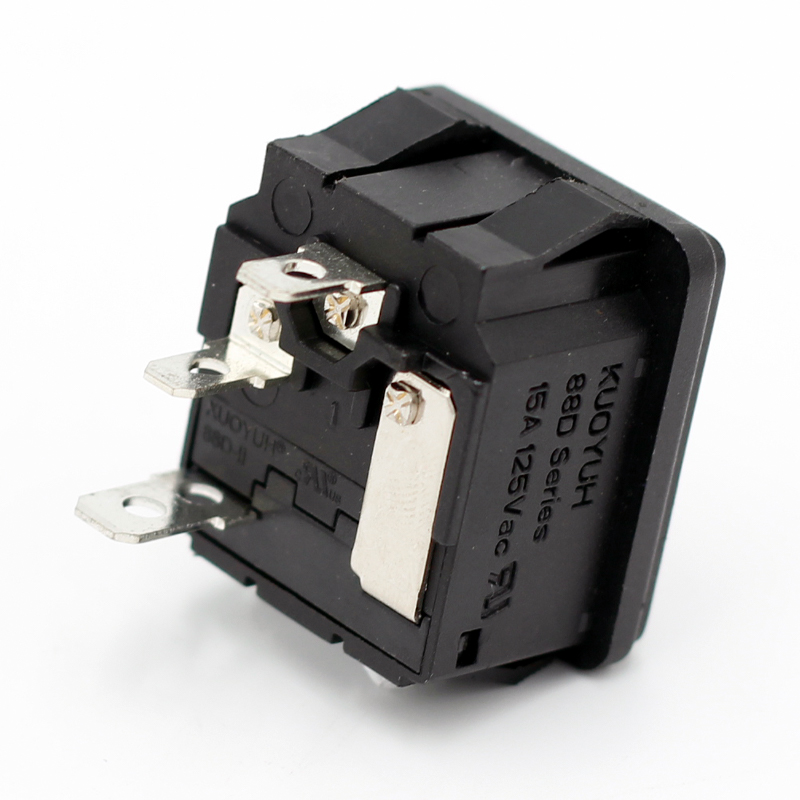

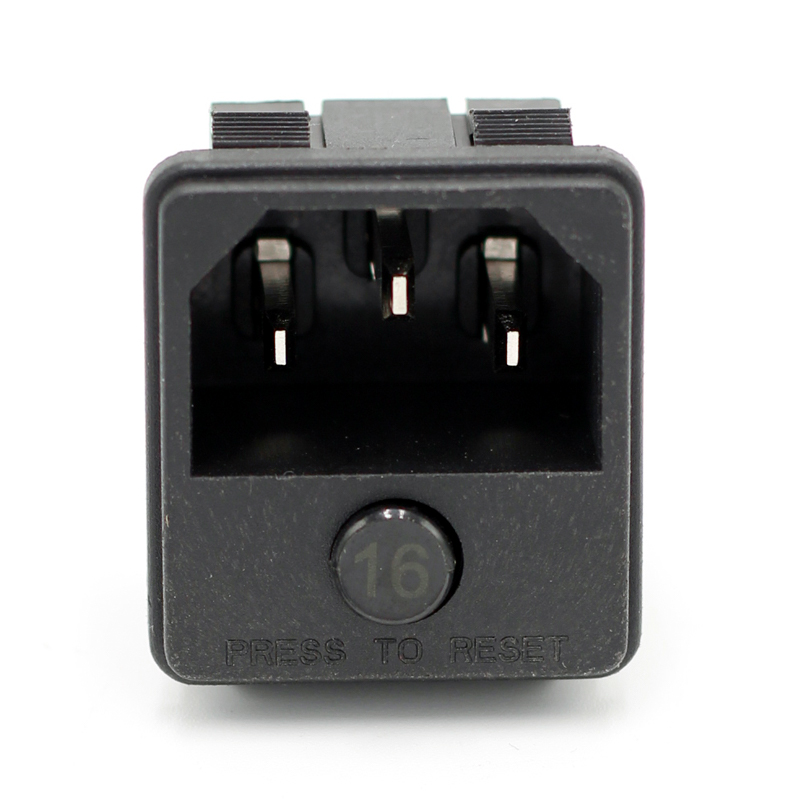

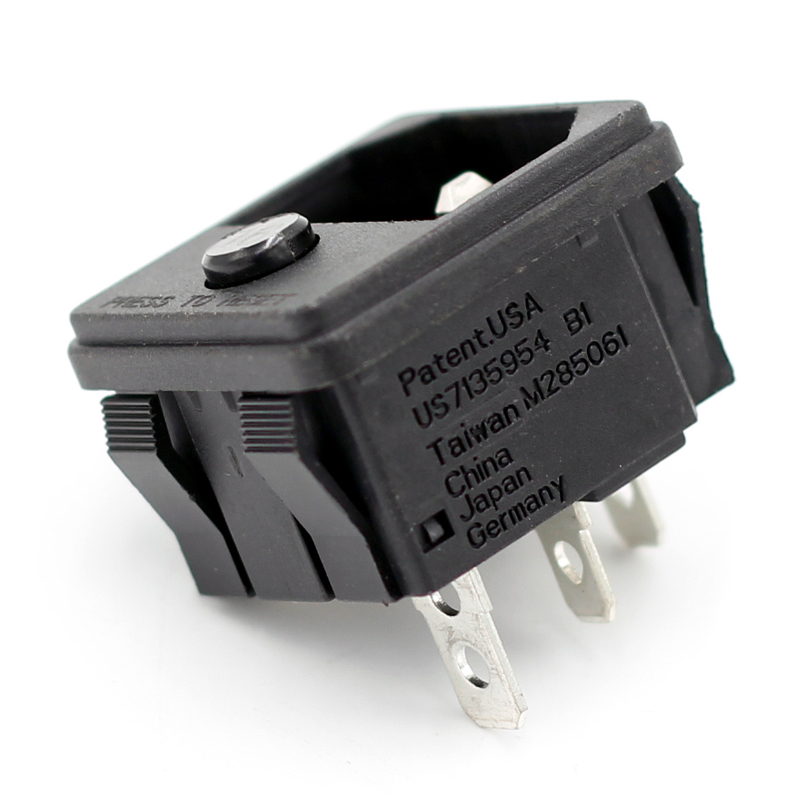

KUOYUH 88D Series 5A Plug overload protectors button switch miniature circuit breakers
Categories：Circuit breaker
Plugs
Rating | 5A 125VAC |
Insulation Resistance | >100MOHM (DC 500V) |
Dielectric Strength | > 2,000VAC/min. |
Housing Material | Thermoplastic 94V-2 ~ 94V-0 |
Protectors
Rating | 3A~15A 125/250VAC |
Insulation Resistance | >100MOHM (DC 500V) |
Dielectric Strength | > 1,500VAC/min |
Interrupting Capacity | 125/250VAC x 1,000A(UL 1077) |
Breakering Capacity | 6 times rated current |
Insulation co-ordination | Rated impulse withstand voltage 2.5kV |
Mechanical/Environmental Data
Operating Ambient Temperature | : -10℃ ℃ |
Termination | 250’’(6.35mm）quick connects or solder terminals |
Mounting | Various options. See Ordering Information and drawings |
