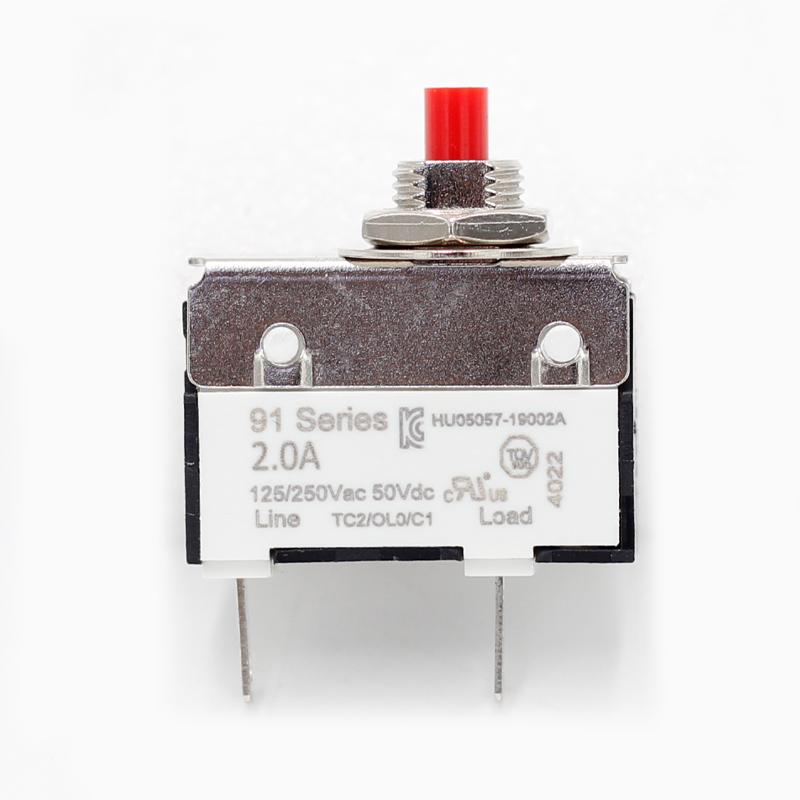

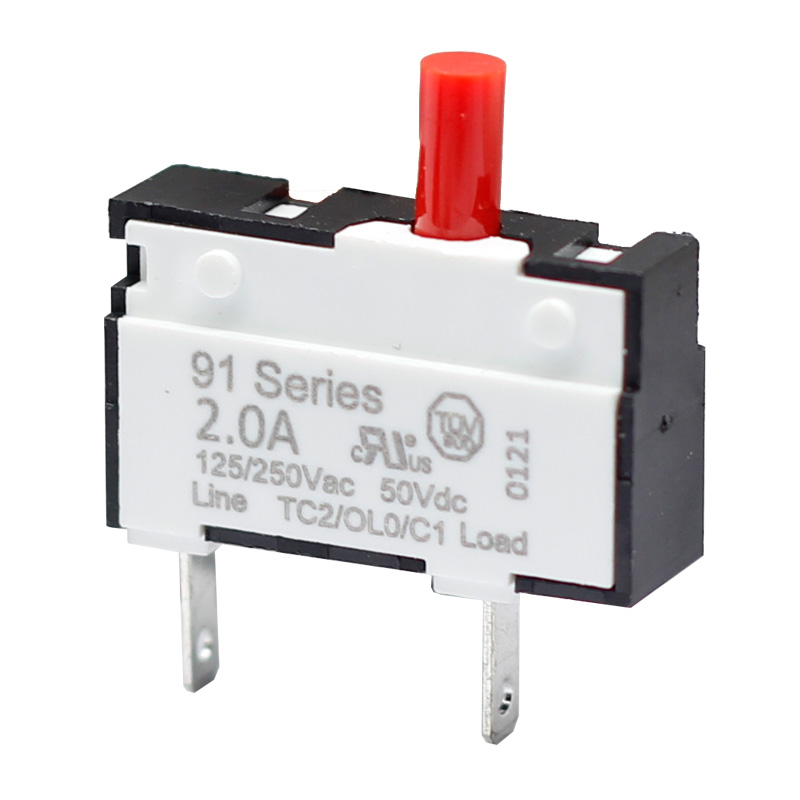

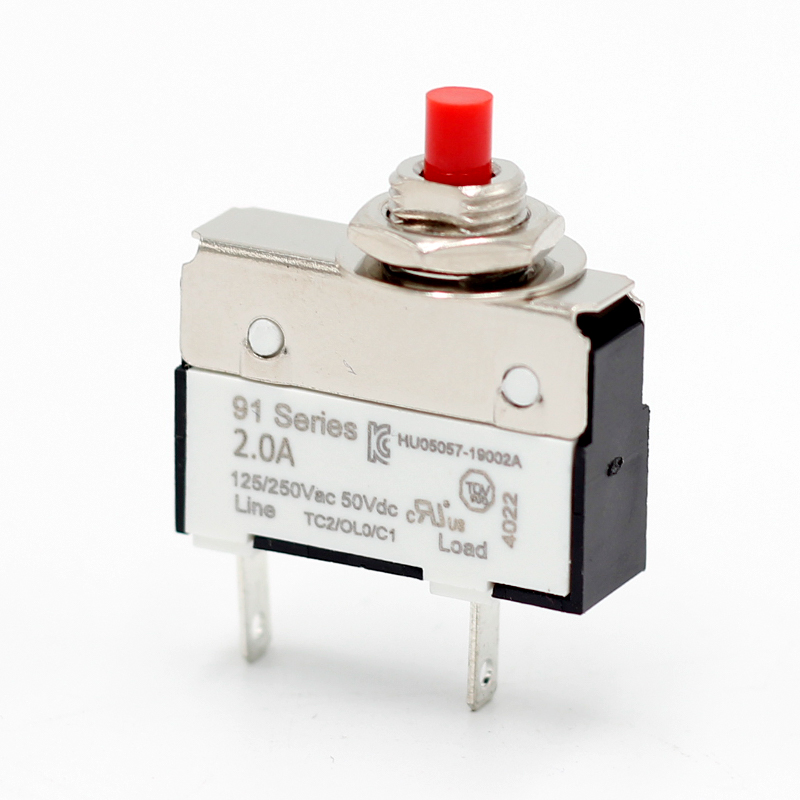

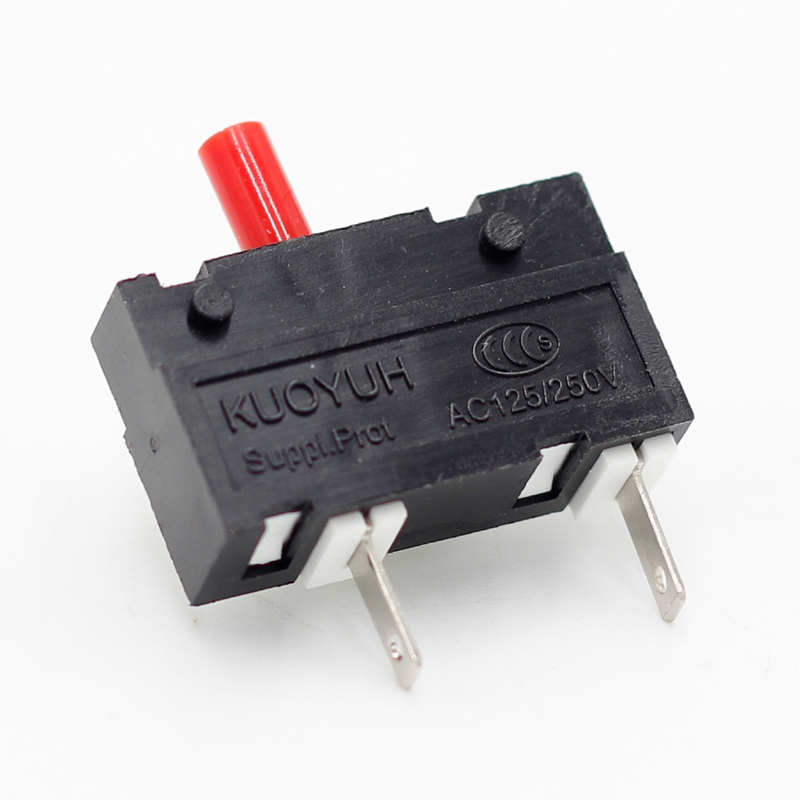

Technical data
Current rating range:0.5~10A
Input voltage rating :125/250VAC; 32/50VDC
Interrupting Capacity : 125/250VAC x 1,000A(UL 1077)
Typical life : 1,000 operations at 200% overload
Insulation co-ordination:Rated impulse withstand voltage 2.5kV
Dielectric Strength:> 1.500VAC/min.
Insulation Resistance:>100MOHM (DC 500V)
Degree of protection:Terminal area IP00, operating area IP40

Mechanical/Environmental Data

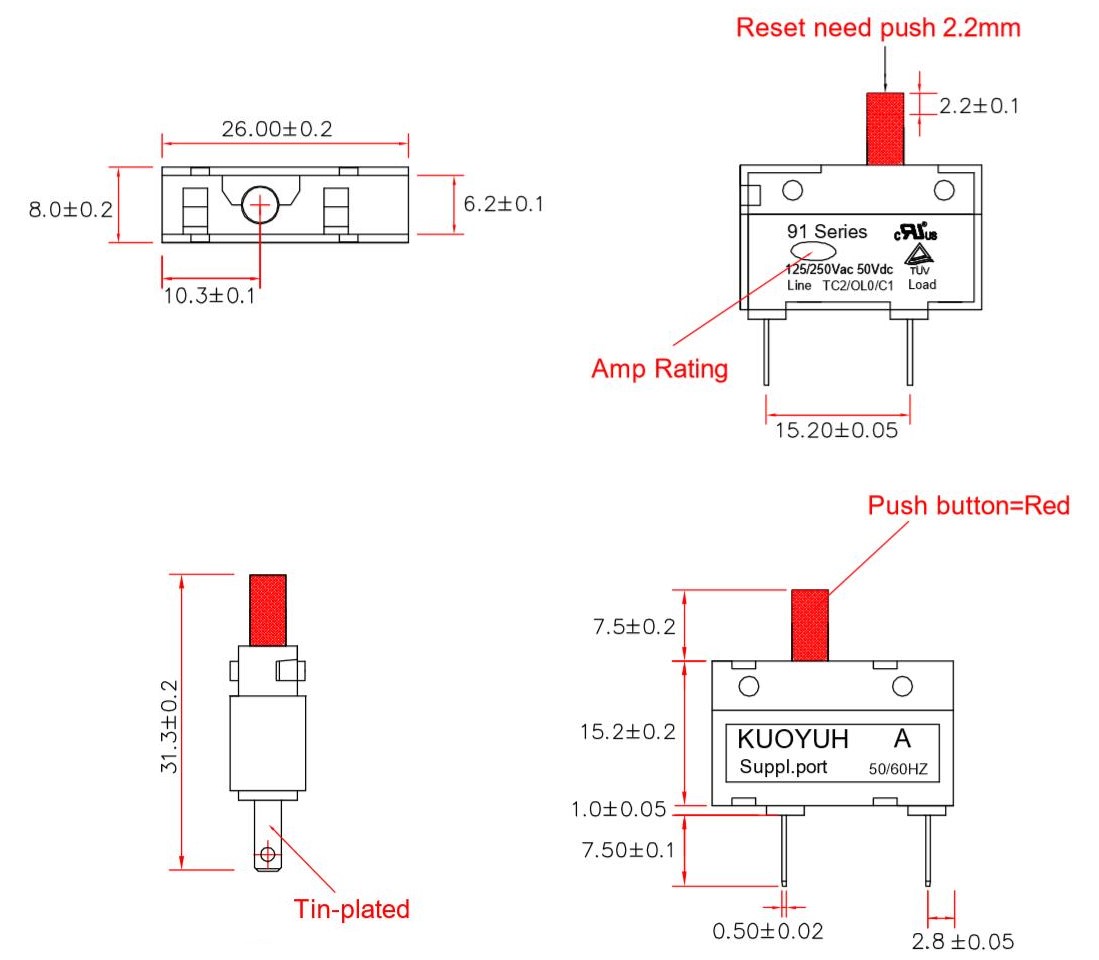

Operating Ambient Temperature: -10℃ to +60℃ Mounting: Various options. See Ordering Information and drawings
Termination: 250’’(6.35mm）quick connects or solder terminals

Calibration(at25℃)
100% of Rated Current: Hold , No Trip;150% of Rated Current: Trip Within 1 Hour;
175% of Rated Current: 2.0-10.0 sec Trip;
200% of Rated Current: 1.1-5.0 sec Trip

Approval
Approval & File No Rated current Rated voltageCUL UL E155159 0.5-10.0A 125/250VAC; 50VDC
TUV SUD B150158611006 0.5-10.0A 125/250VAC; 50VDC
VDE 40036160 1.0-10.0A 125/250VAC

Typical applications
Tarnsforms, Motors, Battery chargers, Power supplies,
appliances, extra low voltage systems, machinery.
