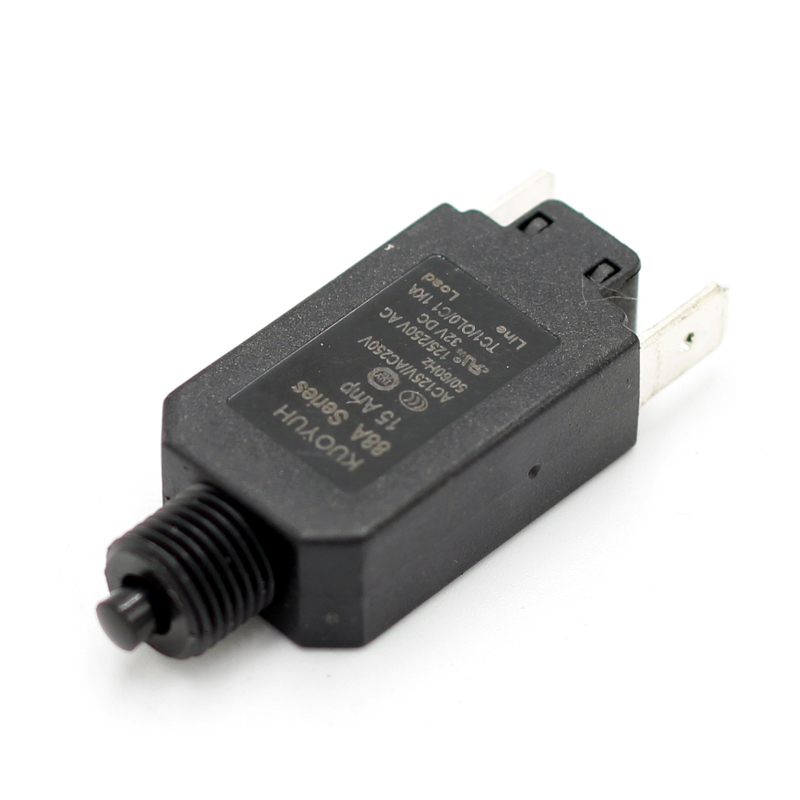

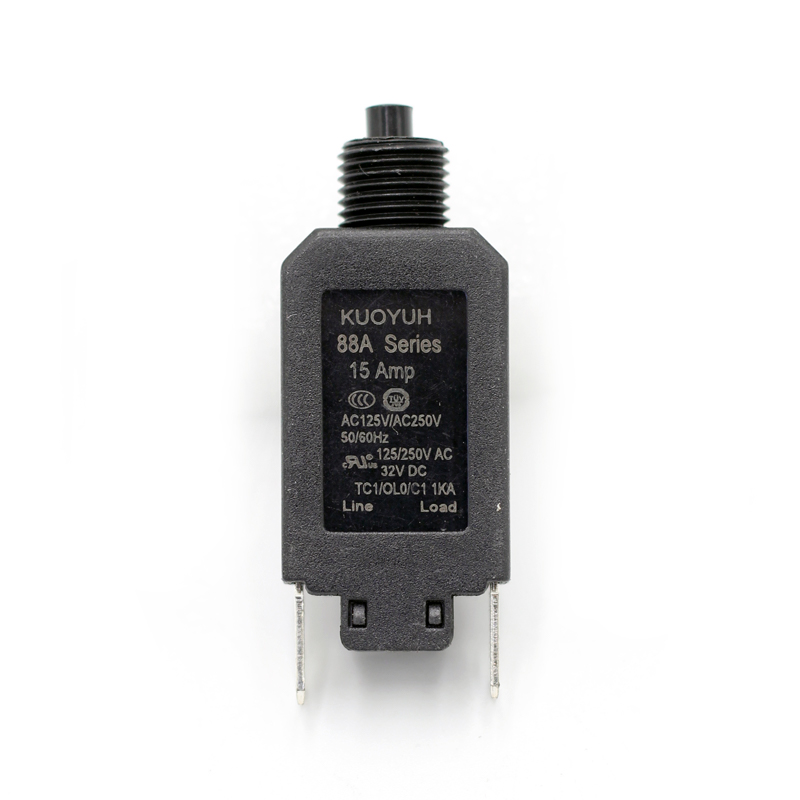

KUOYUH 88A 3A 4A 5A 6A7A8A10A12A14A15A16A Overload Protector Circuit Breaker button Switch Mount 32V DC Overload Switch

Sales Enquiry Whatsapp

Technical data

Current rating range	3-16A
Input voltage rating	125 / 250VAC : 50VDC.
Interrupting Capacity	125 / 250VAC X 1 , 000A ( UL 1077 ).
Typical life	1,000 operations at 200% overload.
Insulation co-ordination	Rated impulse withstand voltage 2 . 5kv.
Dielectric Strength	1500VAC / min
Insulation Resistance	> 100MOHM ( DC 500V.
Degree of protection	Terminal area IP00 , operating area IP40.

Operating Ambient Temperature: -10℃to+60℃.

Termination: 250(6. 35mm) quick connects or solder terminals.

Mounting Various options. See Ordering Information and drawings

Tarnsforms, Motors, Battery chargers, Power suppliesappllances, extra low voltage systems, machinery.

100% of Rated Current: Hold, No Trip

135% of Rated Current: Trip Within 1 Hour.

.200% of Rated Current: 5.2-30. sec Trip.

300% of Rated Current: 1.5-5.5 sec Triip
