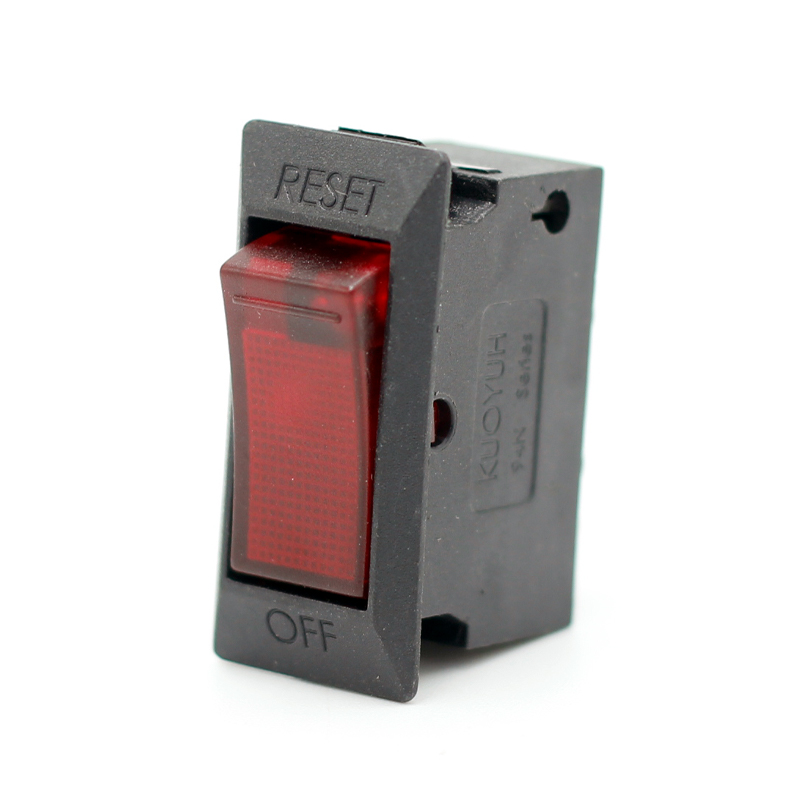

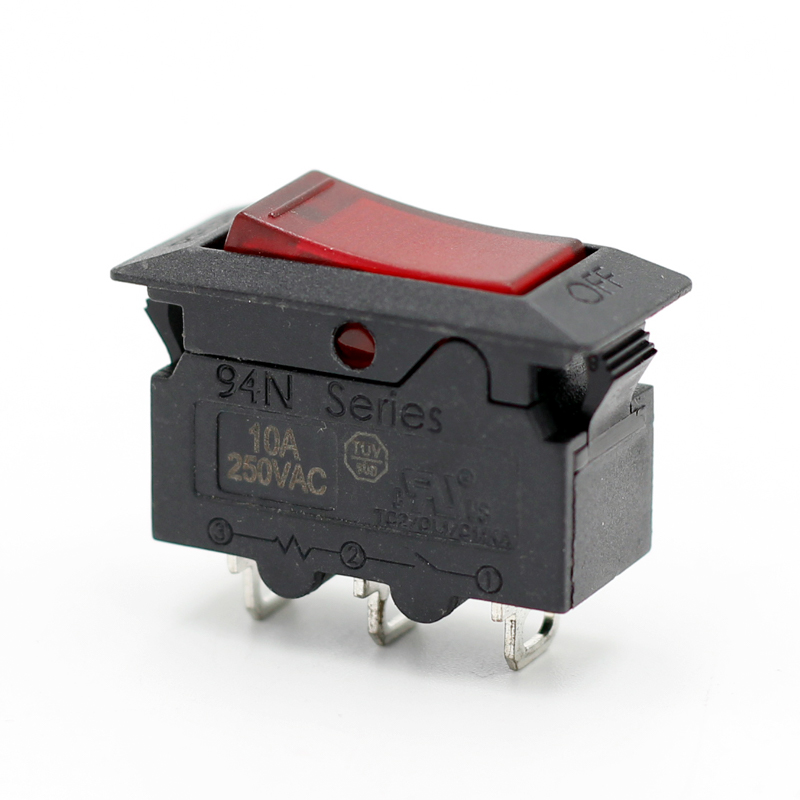

Manual 15A Red Light Black Housing Overload Protection Rocker Switch Snap In Kuoyuh 94N Series Circuit Breaker

Sales Enquiry Whatsapp

KUOYUH 94N Series Breaker-switch

Current rating range	3~16A
Input voltage rating	125/250VAC; 50VDC
Interrupting Capacity	125/250VAC x 1,000A(UL 1077
Breakering Capacity	6 times rated current
Dielectric Strength	> 1.500VAC/min.
Insulation Resistance	>100MOHM (DC 500V)
Degree of protection	Terminal area IP00, operating area IP40

•Mechanical/Environmental Data

Operating Ambient Temperature: -10℃ ℃

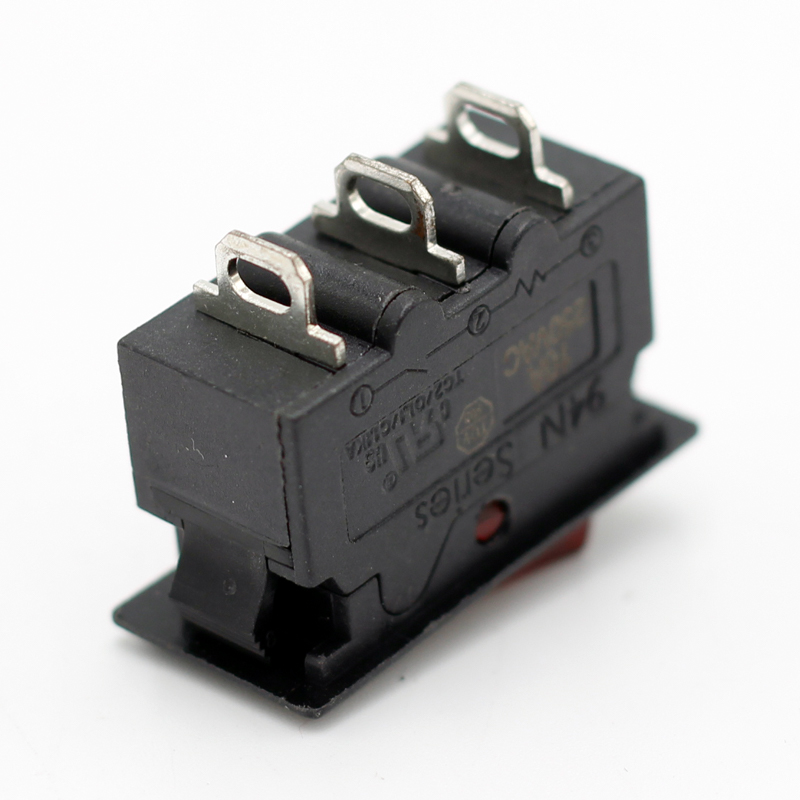

•Termination: 250’’(6.35mm)quick connects or solder terminals

•Typical applications

Tarnsforms, Motors, Battery chargers, Power supplies,appliances, extra low voltage systems, machinery.

•Calibration(at25 ) ℃

•100% of Rated Current: Hold , No Trip

•300% of Rated Current: 1.5-5.0 sec Trip

•200% of Rated Current: 5-30 sec Trip

•150% of Rated Current: Trip Within 1 Hour
