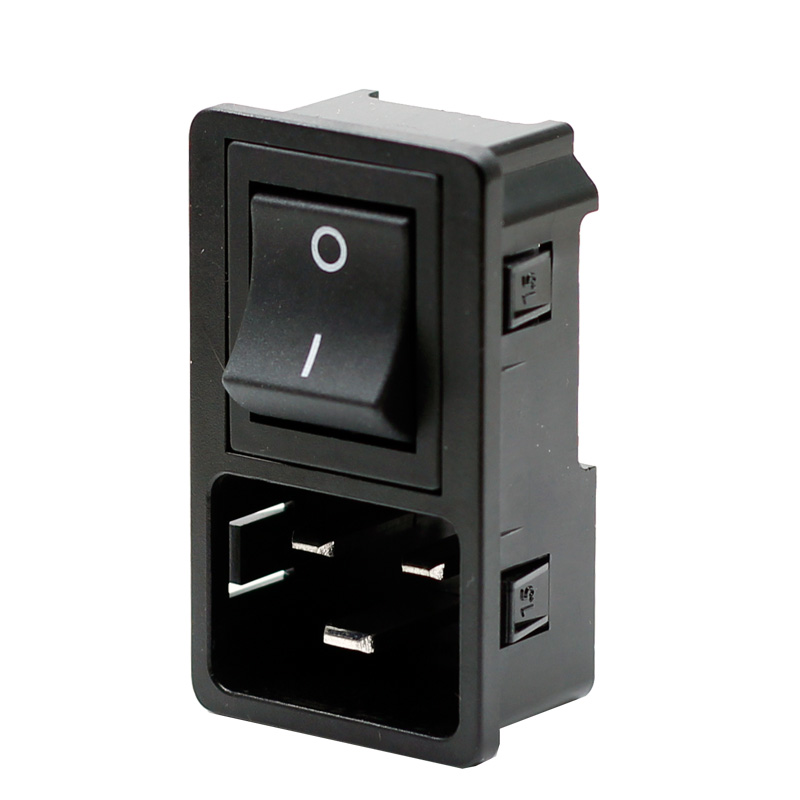

GOOD FUSE HOLDER SOCKET
An AC outlet is a socket that can only pass an AC voltage.
It is usually referred to in the market as an appliance socket and an electrical socket.
Can be used in the chassis, instuments, tableware, daily household.
| Specification | Inlet | Rocker Switch |
| Power Rating | 16A 250V AC Europe 20A 250V AC North America | 10A 250V AC |
| Electric Strength | AC 2000V FOR 1 minute | AC 15000V FOR 1 minute |
| Contact Resistance | 30MΩ Max | 20MΩ Max |
| Insulation Resistance | 100MΩ min.at 500V DC | 100MΩ min.at 500V DC |
| Operating Temperature | +80℃ | +125℃ |
| Material | Thermoplastic UL Flammanility 94V-0& COPPER ALLOY | Thermoplastic UL Flammanility 94V-2& COPPER ALLOY |
| MOUNTING | C:SCREW-ON P:SNAP-IN | Double Pole(ON/OFF SWITCH) |

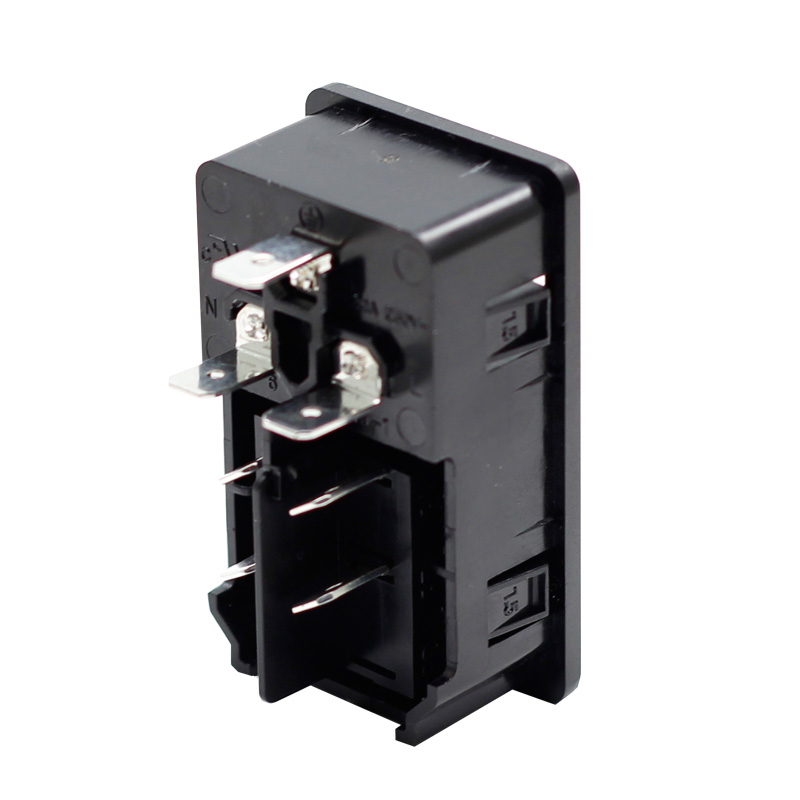

| Terminal | Q:Q.D/Solder Tab,4.8×0.8 S:Solder Tab,3.5×0.8 W:Q.D Tab,6.3×0.8 P:PCB Pin | Q.D Tab,4.8×0.8 Solder Tab,3.5×0.8 Q.D Tab,6.3×0.8 |

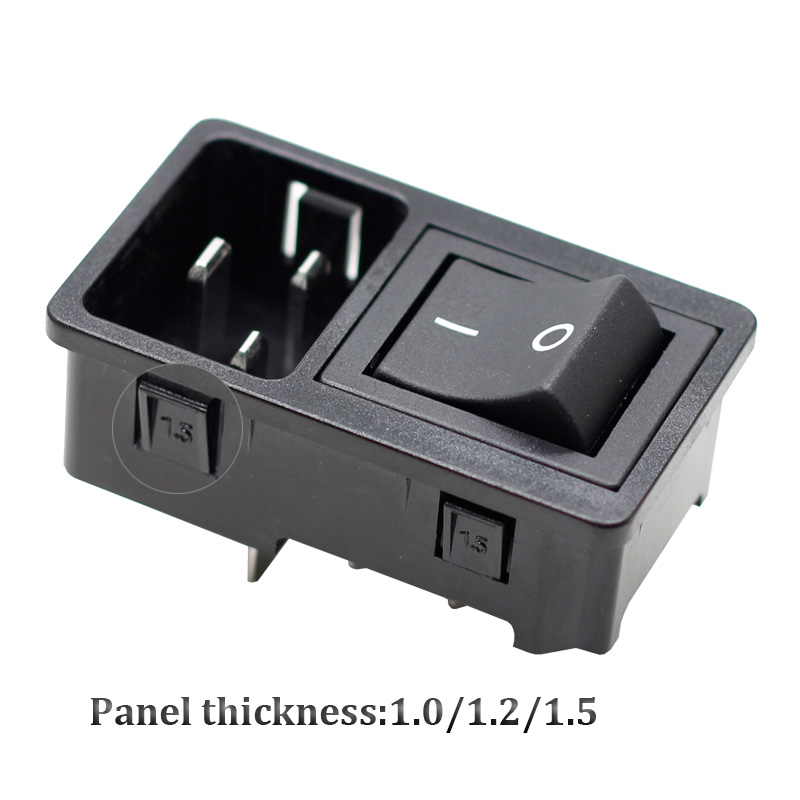

| Panel thickness | Snap-in Panel thickness:1.0/1.2/1.5 | Switch Type M:llluminated |
