2 in 1 socket

Home > Products > Power socket

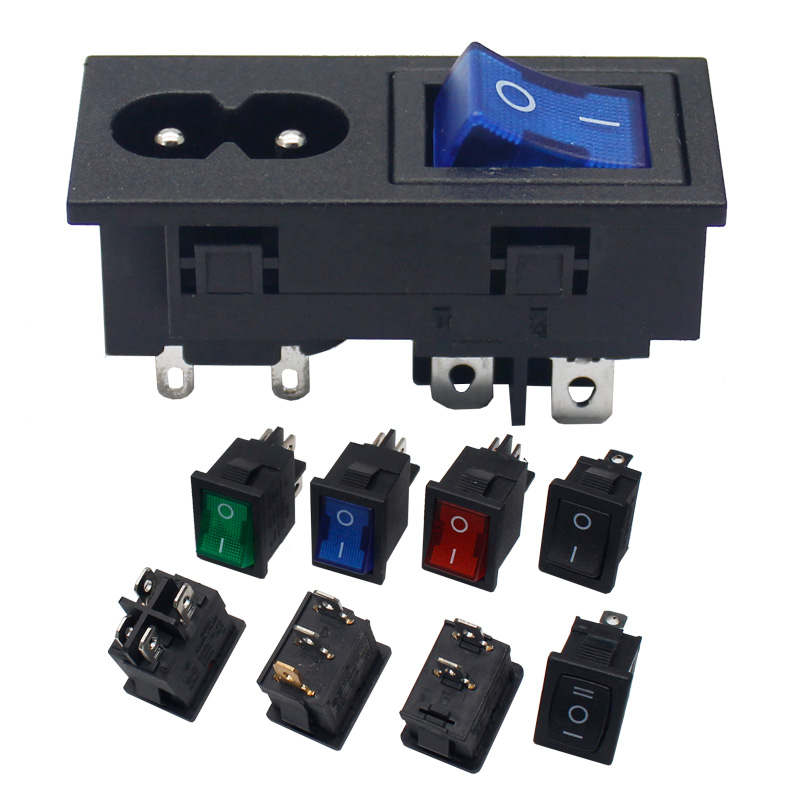

AC power socket C8 - word socket bending foot With switch 2 in 1 JEC
AC power socket C8 - word socket bending foot With switch 2 in 1 JEC1
AC power socket C8 - word socket bending foot With switch 2 in 1 JEC2
AC power socket C8 - word socket bending foot With switch 2 in 1 JEC3
AC power socket C8 - word socket bending foot With switch 2 in 1 JEC4

AC power socket C8 - word socket bending foot With switch 2 in 1 JEC

Categories:Power socket

An AC outlet is a socket that can only pass an AC voltage.

It is usually referred to in the market as an appliance socket and an electrical socket.

Can be used in the chassis, instuments, tableware, daily household.


RATING                                 : 5A 250VAC  T105 UL CUL
                                                 2.5A 250VAC ENEC VDE CCC KC

STANDARD                           : IEC 60320 C8

INSULATION RESISTANCE : 100MΩ 500V DC/1 MIN

DIELECTRIC INTENSITY     : 2500VAC/5S

MATERIAL                            : 94V-2~0
