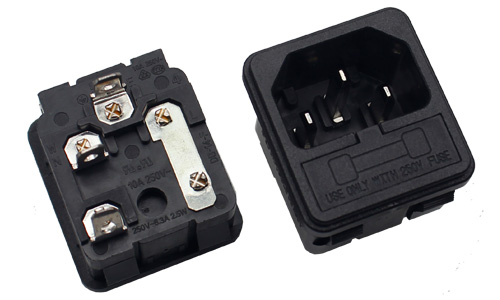

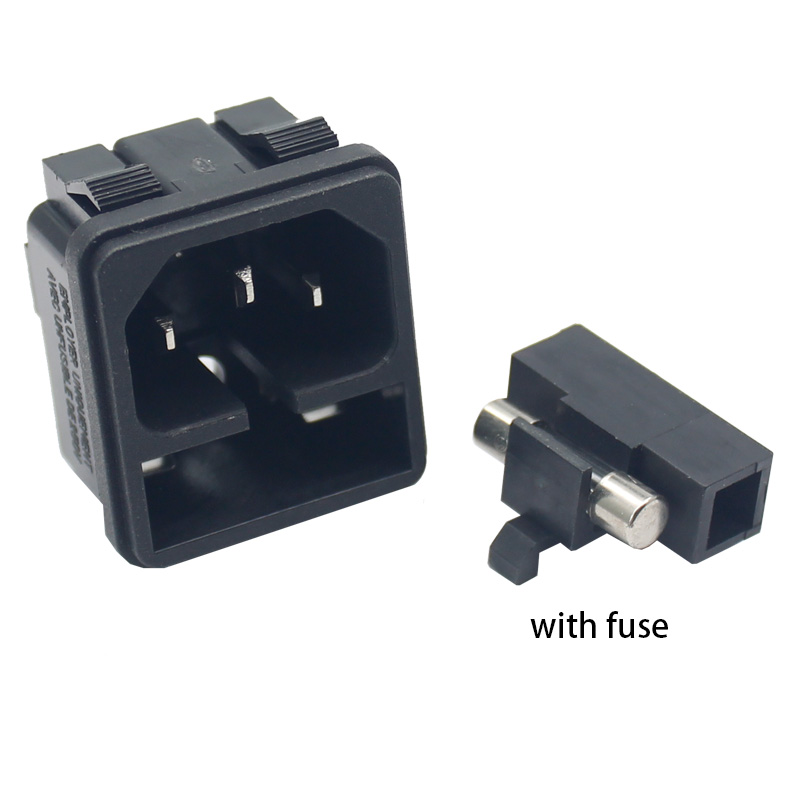

AC 250V 10A Panel Mount snap in IEC 320 C14 Inlet Socket With Fuse Holder
Categories：Power socket
RATING :10A 250V AC T105 UL cUL
10A 250V AC VDE 3C KC
Insert And Extract Force : 1.36kgf-6.8kgf
Operating Life : ≥5000 cycles
Withstand Voltage : Between all terminals:250OVAC 50-60Hz)1min
terminals to Base:3750V AC 50-60Hz)1min
Ieakage Current: 1mA
Insulation Resistance : ≥100MΩ 500VDC
Body Materil : NYLON66 94-V0
